ElecFreaks Ring:bit GVS micro:bit Breakout Board

ElecFreaks Ring:bit GVS micro:bit Breakout Board

Regular price $10.90 SGD
Regular price $10.90 Sale price $10.90 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

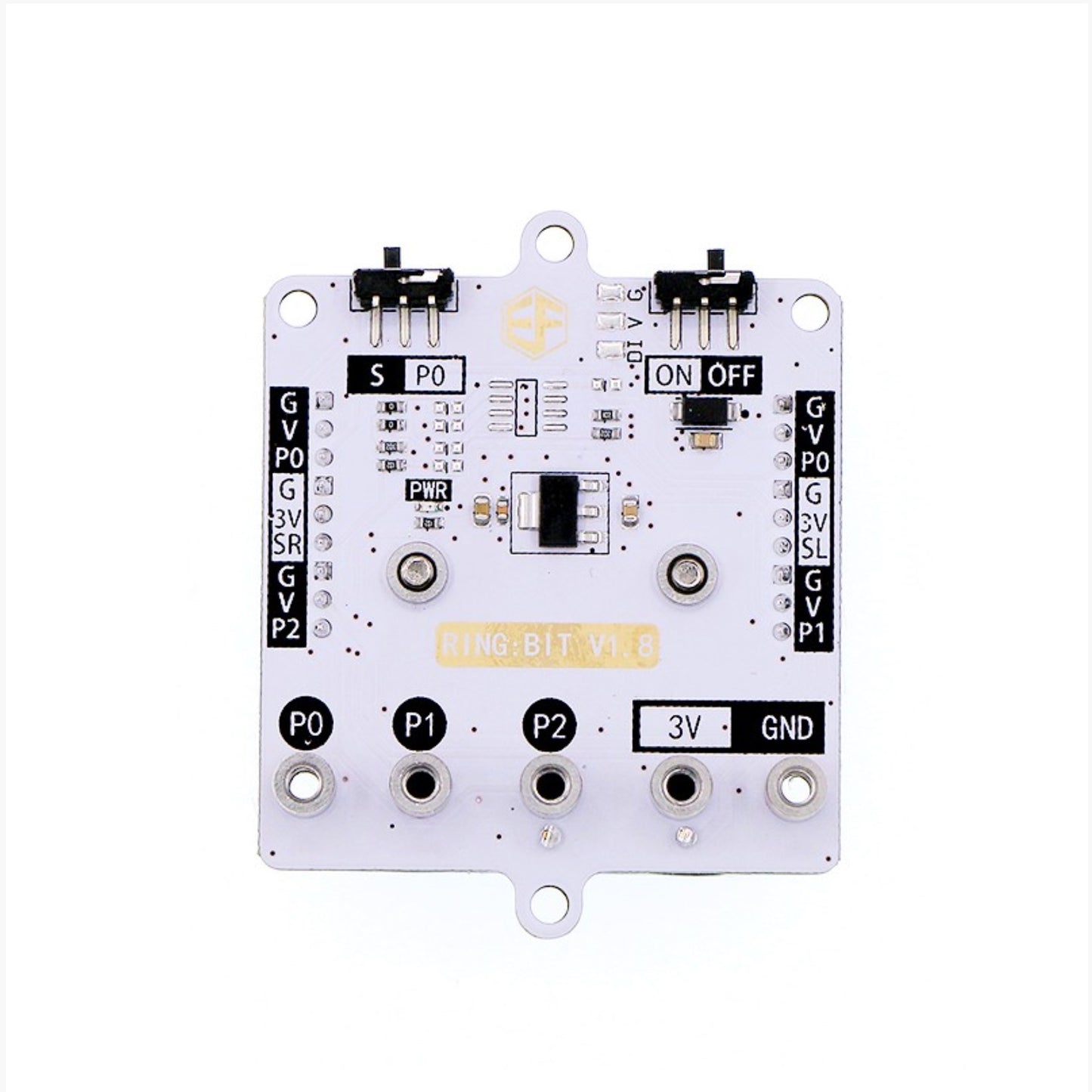

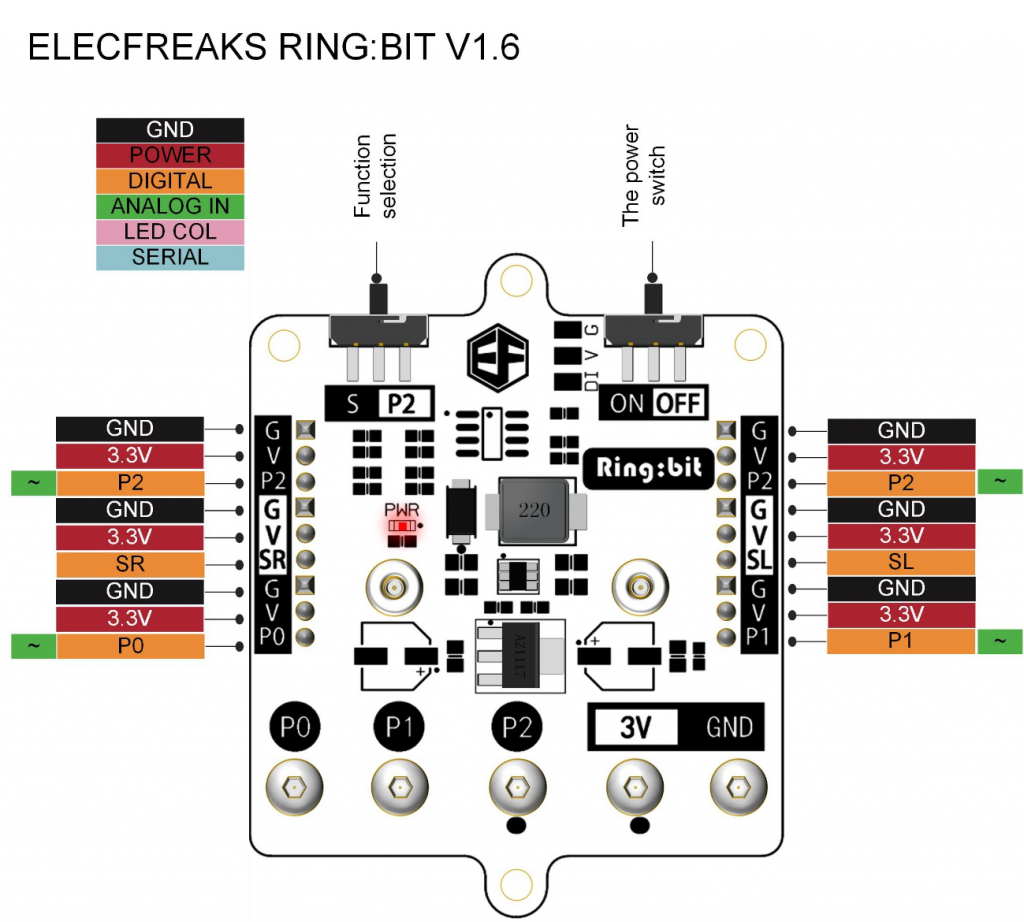

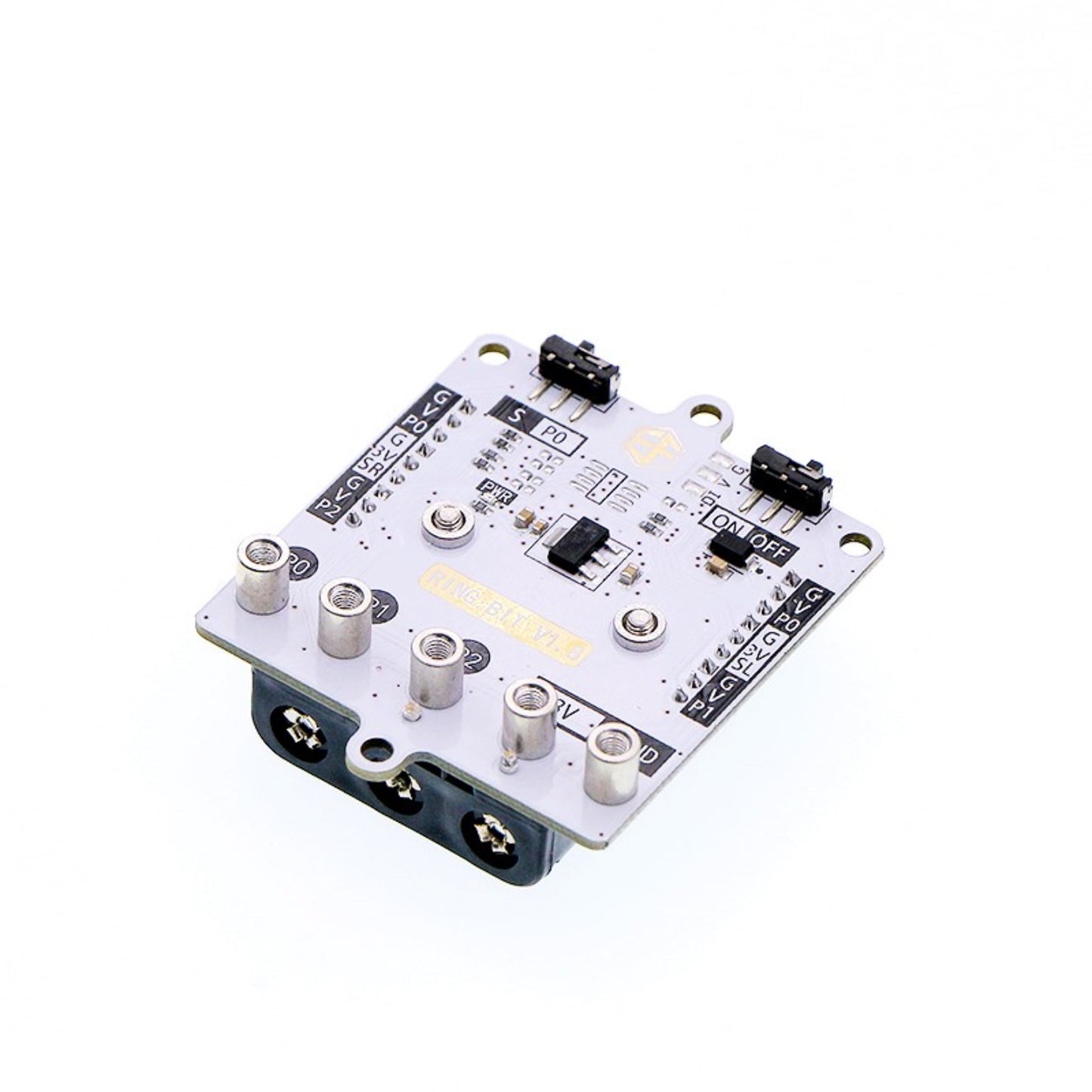

The Ring:bit is an extension board for the micro:bit, which provides an easy screw-type connection to the micro:bit's three IO ports: P0, P1, P2. It can connect up to 3 motors. Each Ring:bit comes with:

  • 1 x Ring:bit
  • 5 x Countersunk Screws

Features:

  • Support GVS connectors
  • Small size
  • Connect up to three servos

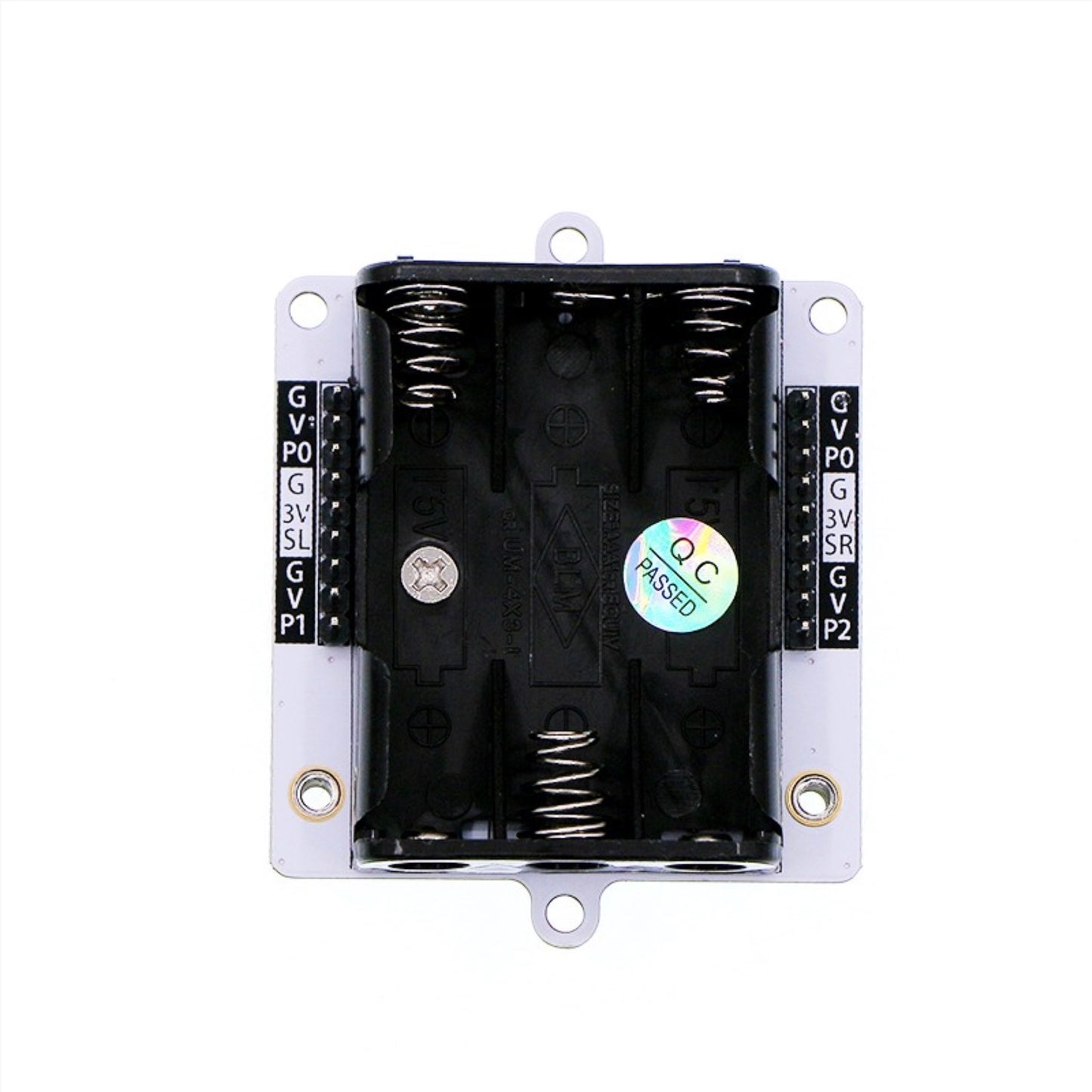

  • Powered by 3 AAA batteries
  • Connect 2 external line detection modules on P2
  • Stabilisation of servo operations

Specifications:

  • Input Voltage: DC 3.9V-4.5V
  • Dimensions: 65.00mm x 51.70mm
  • Weight: 27 g
