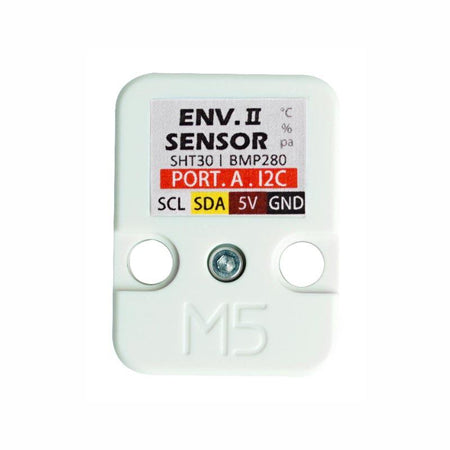

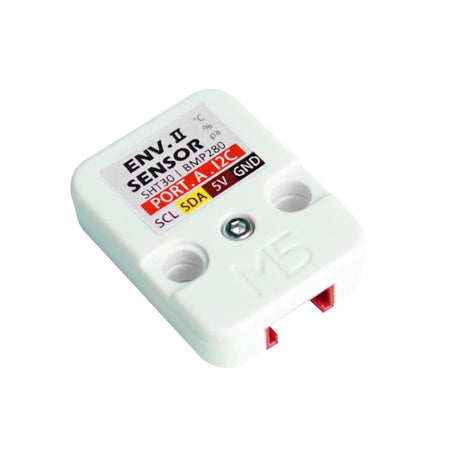

M5Stack ENV II Unit with Temperature Humidity Environment Sensor (SHT30+BMP280)

M5Stack ENV II Unit with Temperature Humidity Environment Sensor (SHT30+BMP280)

Regular price $11 SGD
Regular price $11 Sale price $11 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • ENV II is an environmental sensor which can sense temperature, humidity and atmospheric pressure. It integrates the SHT30 and BMP280 sensors and is programmed over the I2C protocol(SHT30:0x44, BMP280:0x76).
  • SHT30 is a digital temperature and humidity sensor with high precision and low power consumption.
  • BMP280 is an absolute barometric pressure sensor which is especially designed for mobile applications. It offers the highest flexibility to optimize the device regarding power consumption, resolution and filter performance.
  • This product is EOL now, we've released the updated version ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988) which is fully compatible with this product.

Product Features

  • High-precision
  • Supports I2C
  • GROVE interface, supports UIFlow and Arduino
  • Two LEGO installation holes

What's Included

  • 1x ENV II Unit
  • 1x Grove Cable

Specifications

Specifications Parameters
Max Temperature Measuring Range -40℃ ~ 120℃
Typical Temperature Tolerance 0 ~ 60℃/±0.2℃
Humidity Measuring Range 10 ~ 90%RH / ±2%
Air Pressure Measuring Range 300 ~ 1100hPa / ±1hPa
Communication Protocol I2C(SHT30:0x44, BMP280:0x76)
Operating Temperature Range 0°C to 60°C
Net Weight 5g
Gross Weight 17g
Product Size 24.2*32.2*8.1mm
Package Size 67*53*12mm
Case Material Plastic (PC)
