M5Stack

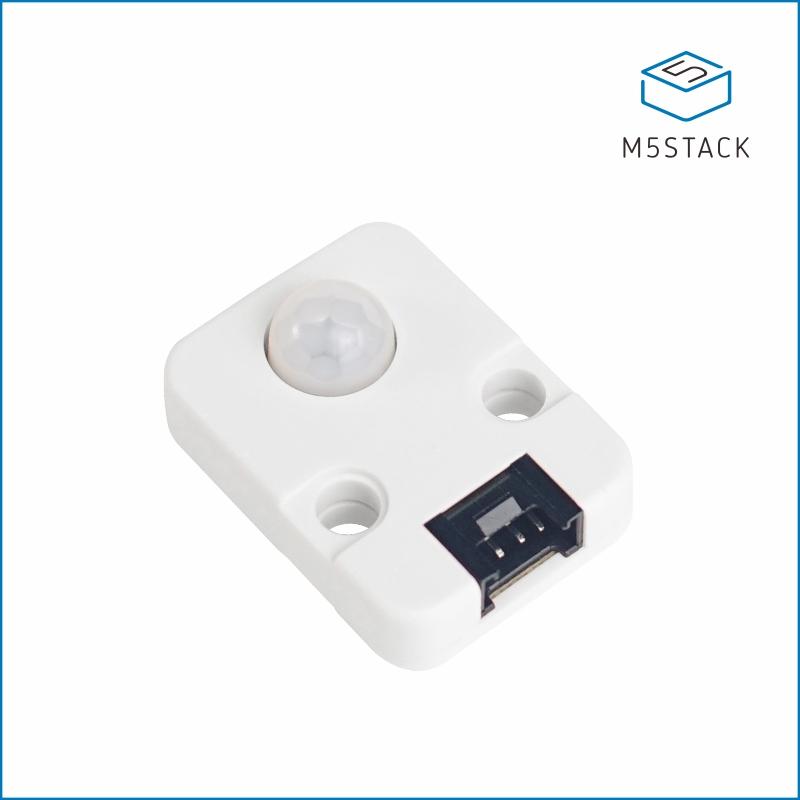

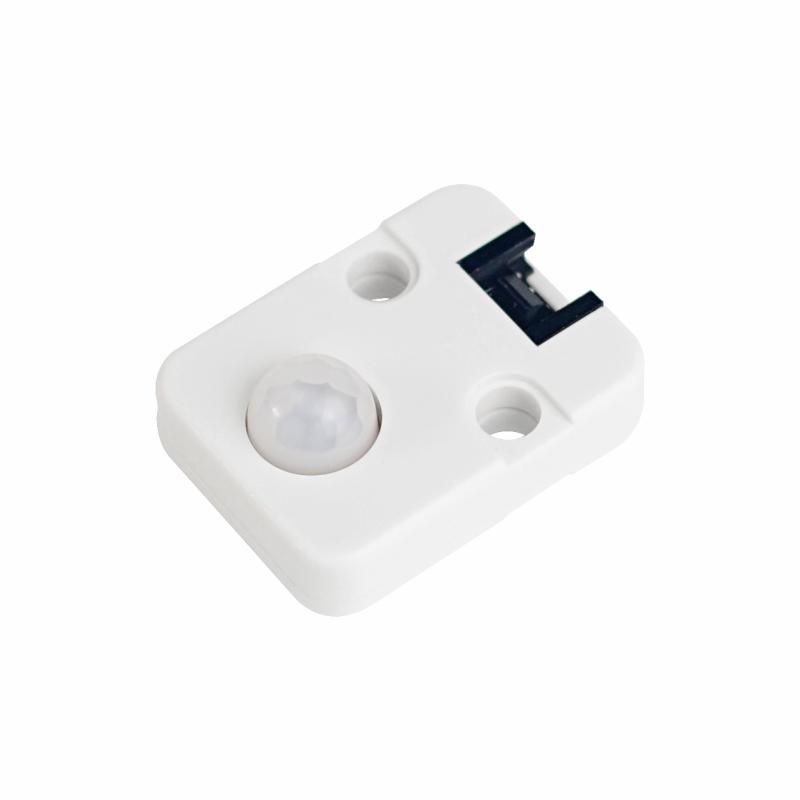

M5Stack PIR Motion Sensor (AS312)

M5Stack PIR Motion Sensor (AS312)

Regular price $8.10 SGD
Regular price $8.10 Sale price $8.10 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • PIR is a human body infrared unit. It belongs to the "passive pyroelectric infrared detector". It detects the infrared radiation emitted and reflected by the human body or object. When infrared is detected, the output level is high and it takes a while. Delay (high during the period and allow repeated triggers) until the trigger signal disappears (restores low)

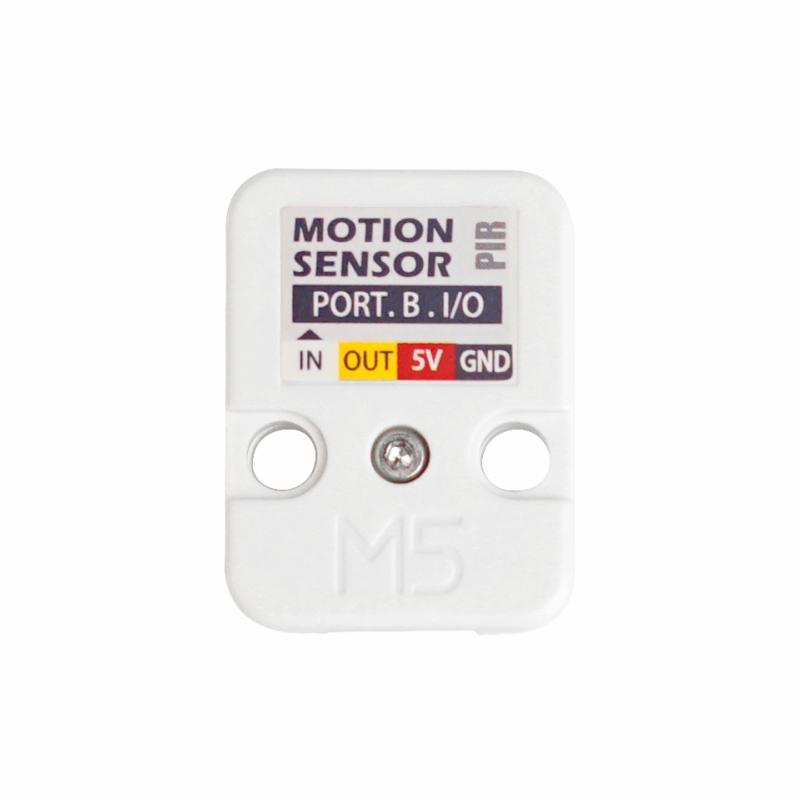

  • This Unit communicates with the M5Core via the GROVE B.
  • Notice: This Unit has 2s delay time

Product Features

  • Detects the distance: 500cm
  • Latency time: 2s
  • Sensing range: <100°
  • Quiescent current: <60uA
  • Operating temperature: -20°C to 80°C
  • GROVE interface, supports UIFlow and Arduino
  • Two LEGO installation holes

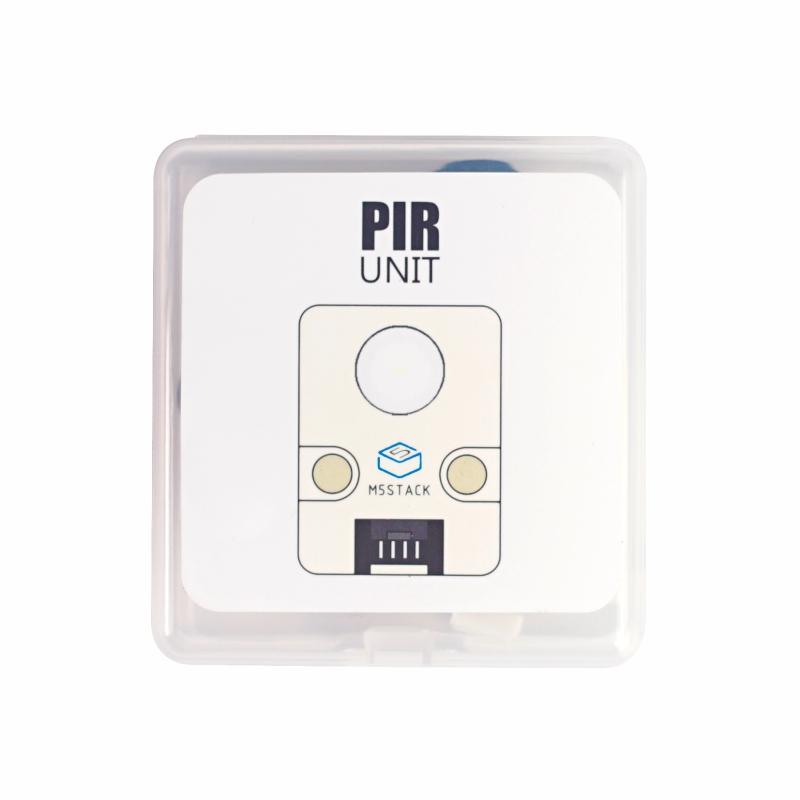

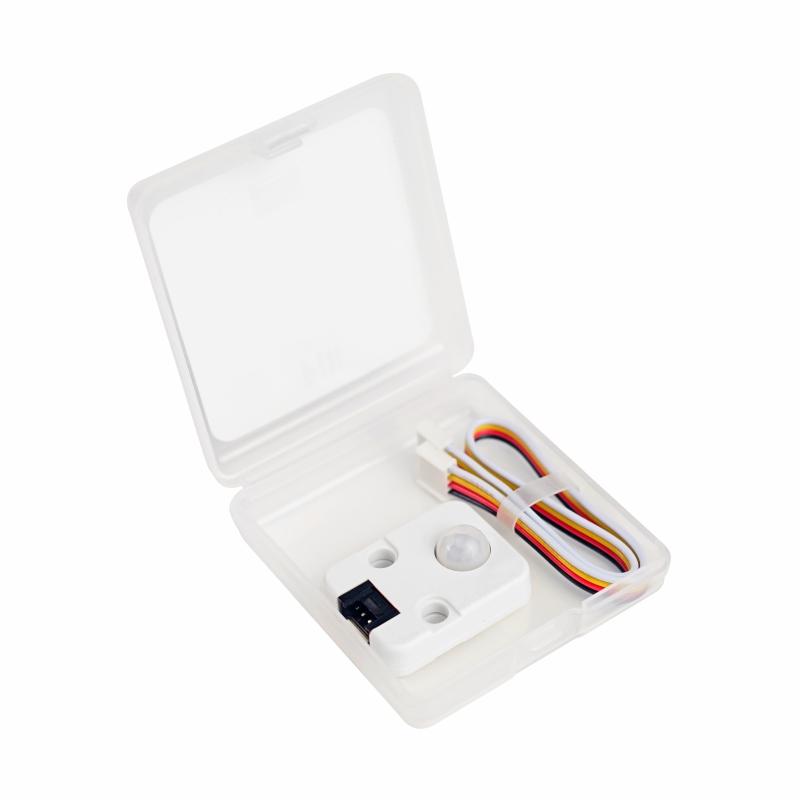

What's Included

  • 1x PIR unit
  • 1x GROVE Cable

Applications

  • Human body Induction Lamp
  • Security Product
  • Automatic Induction Appliance Settings

Specifications

Resources Parameters
Net Weight 5g
Gross Weight 20g
Product Size 32*24*12mm
Package Size 60*57*17mm

Learn and Documents



>>>>> Documents <<<<<
