4tronix

micro:bit Bit:Bot Integrated Robot

micro:bit Bit:Bot Integrated Robot

Regular price $65 SGD
Regular price $65 Sale price $65 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

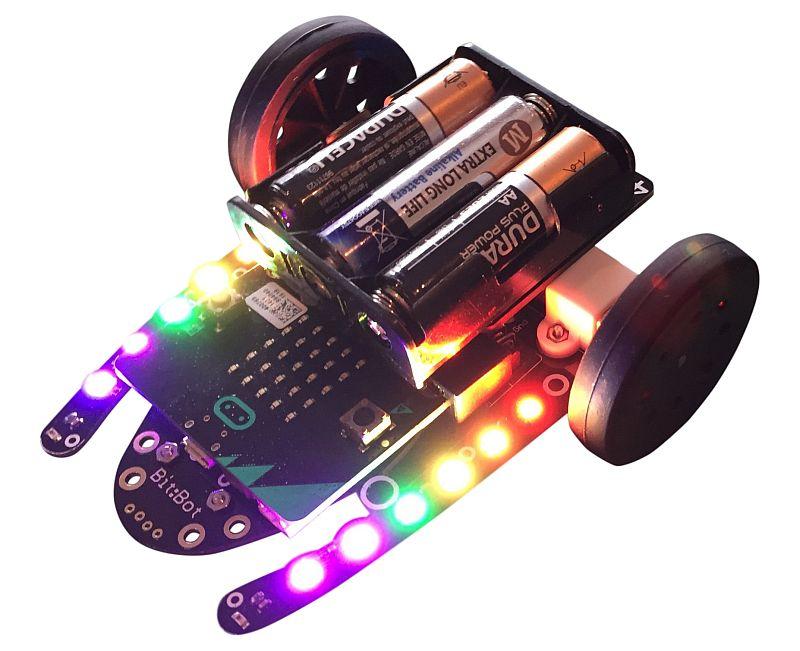

Bit:Bot Fully Integrated Robot for the BBC Micro:Bit

This (almost) ready-assembled robot requires no soldering, no wires and nothing more than a screwdriver to complete it.


The Bit:Bot fully engages children and adults alike, allowing you to explore and code the BBC Micro:Bit using any of the languages available (not all features are supported in all languages)

Learn here how to control the Bit:Bot with your Bluetooth phone

*NEW* There is now a Microsoft PXT package for Bit:Bot (thanks to Sten Roger Sandvik, @stenrs on Twitter). Go to the Advanced tab or the Tools gear icon and select Add Package, then search for BitBot

Check out these features:

  • 2 micro-metal gear motors. Both fully controllable in software, for both speed (0 to 100%) and direction (forward or reverse)
  • Wheels with rubber tyres for maximum grip
  • Really smooth metal ball front caster
  • 12 mini neopixels in 2 sets of 6 along the arms either side. Select any colour for any pixel, produce stunning lighting effects as your Bit:Bot moves around

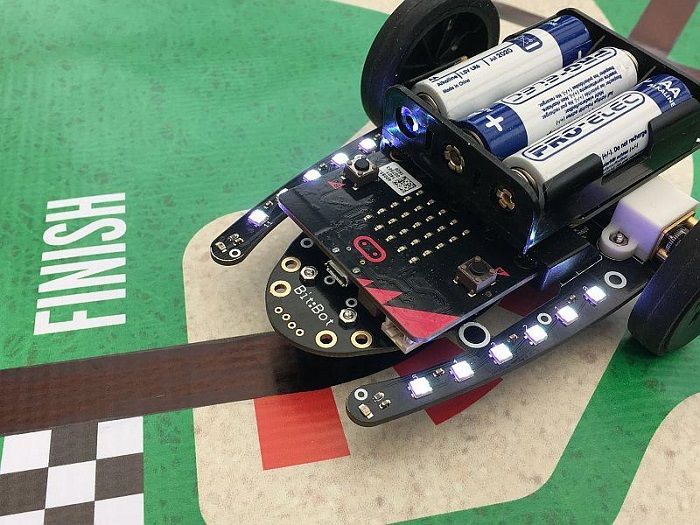

  • 2 digital line following sensors. Code your own line-following robots and race them to see whose code produces the fastest lap time!
  • 2 analog light sensors (front left and front right) so your Bit:Bot can be programmed to follow a light source such as a torch, or you could code it to go and hide in the darkest place it can find
  • Buzzer, so you can make beeping sounds whenever you want

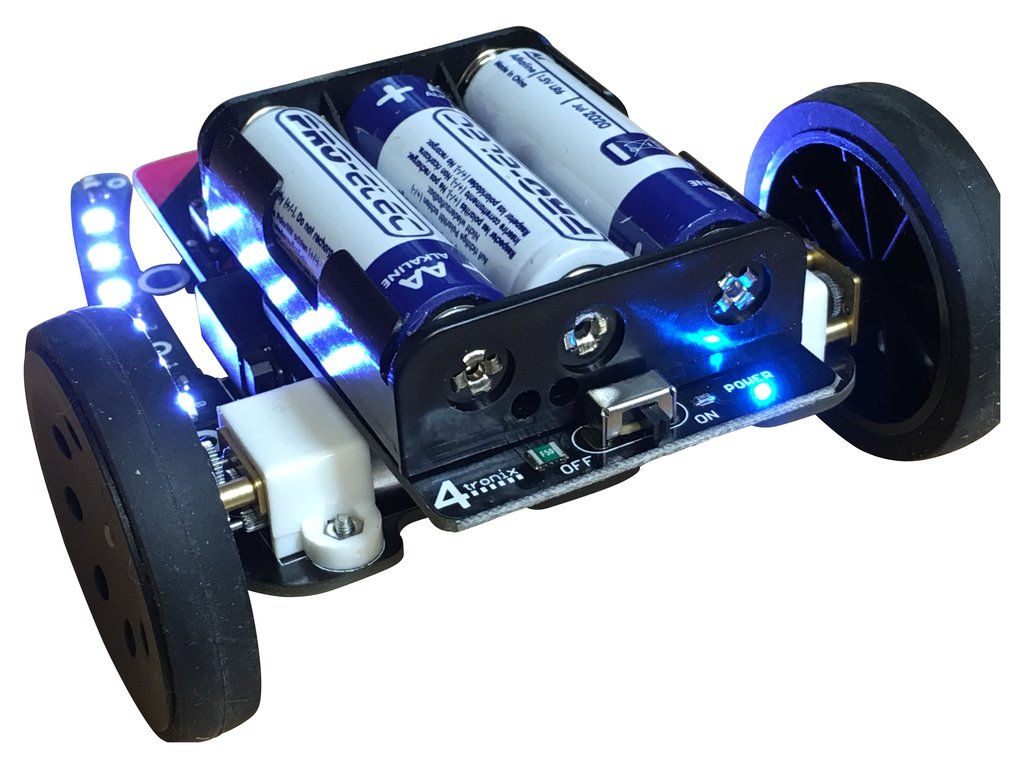

  • Powered from integrated 3xAA battery holder with on/off switch and blue indicator LED
  • Easily plug your BBC micro:bit in and out using the edge connector
  • Extension port for addition neopixels (such as McRoboFace)
  • Expansion connections at the front for additional sensors (Ultrasonic rangefinder available now, more in development)

Optionally, you can add an Ultrasonic Distance Sensor (rangefinder) module. The sensor can be either soldered to the module, or connected via a socket. No soldering is required for either version. The socketed version makes it easier to connect a straight micro-USB lead to the Micro:Bit, but the soldered version is more robust. Consider using a right-angled USB cable with this option

We also have an option for a pen holder that is fitted at the back. This can be plain, or have LEDs on to create a glow ring effect around the pen

See 4tronix's detailed blog entry for example code snippets and application ideas



You'll need a BBC micro:bit for this kit! Note that a BBC micro:bit is not included in this kit, but you can pick one up here.
