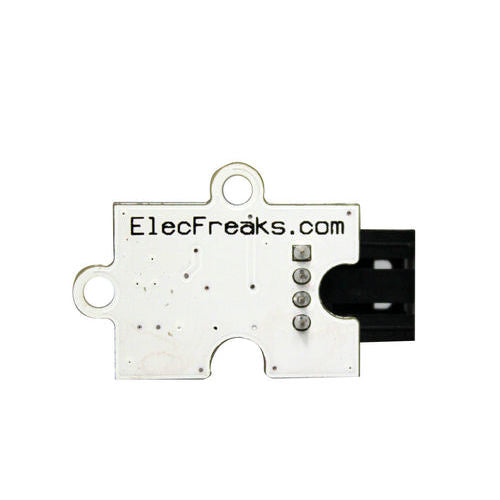

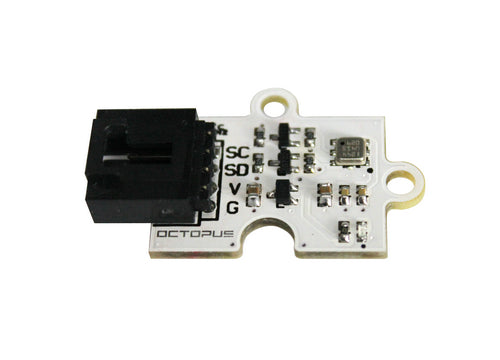

Octopus Barometric Pressure Sensor (BMP180)
Octopus Barometric Pressure Sensor (BMP180)
Regular price
$12 SGD
Regular price
Sale price
$12 SGD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Octopus BMP180 Barometric Pressure Sensor is a high precision, small volume pressure sensor. Factory-calibrated to have a -40°C to +85°C operational range, ±2°C temperature accuracy.
It is built around the Bosch BMP180 digital pressure sensor, which measures air pressure and temperature and is read over an I2C interface. Typical uses include weather stations and estimating altitude.
Sensor specifications (BMP180)
| Item | Parameter |
| Sensor | Bosch BMP180 |
| Pressure range | 300–1100 hPa (about +9000 m to -500 m relative to sea level) |
| Absolute pressure accuracy | -4.0 to +2.0 hPa (0–65°C) |
| Pressure resolution | 0.01 hPa |
| Temperature accuracy | ±2.0°C max (0–65°C) |
| Temperature resolution | 0.1°C |
| Operating temperature | -40°C to +85°C |
| Interface | I2C |
| Calibration | Fully calibrated at the factory |
