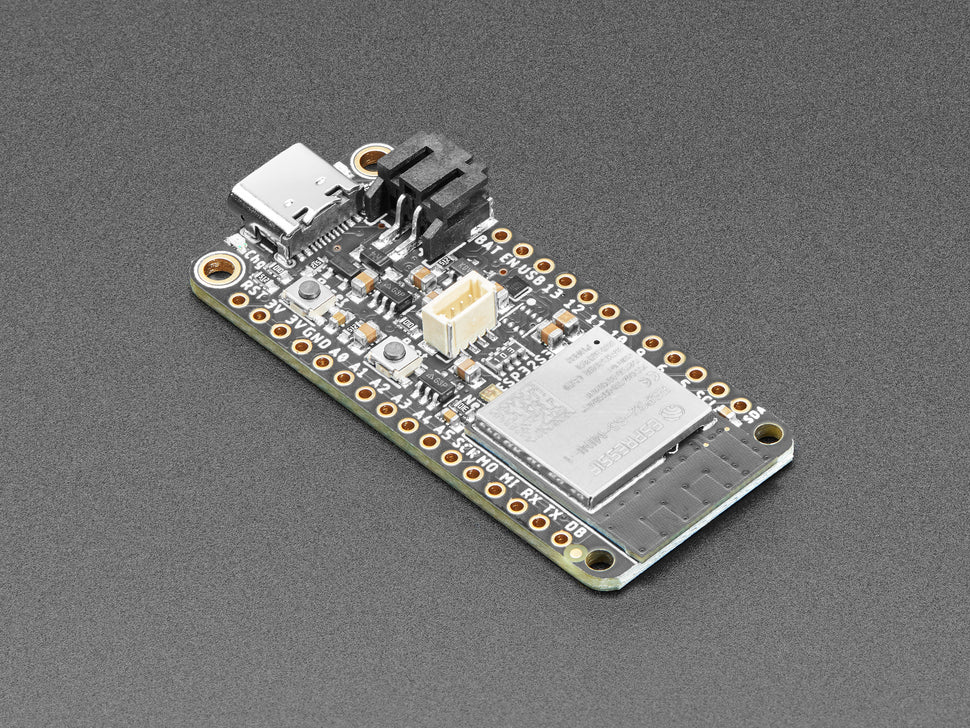

Adafruit ESP32-S3 Feather with 4MB Flash 2MB PSRAM - STEMMA QT / Qwiic

Adafruit ESP32-S3 Feather with 4MB Flash 2MB PSRAM - STEMMA QT / Qwiic

Regular price $25 SGD
Regular price $25 Sale price $25 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

The ESP32-S3 has arrived in Feather format - and what a great way to get started with this powerful new chip from Espressif! With dual 240 MHz cores, WiFi and BLE support, and native USB, this Feather is great for powering your IoT projects. Native USB means it can act like a keyboard or a disk drive, and no external USB-to-Serial converter required. WiFi and BLE mean it's awesome for IoT projects. And Feather means it works with the large community of Feather Wings for expandability.

Features

  • ESP32-S3 Dual Core 240MHz Tensilica processor - the next generation of ESP32-Sx, with native USB so it can act like a keyboard/mouse, MIDI device, disk drive, etc!
  • Mini module has FCC/CE certification and comes with 4 MByte of Flash, 2 MByte PSRAM
  • Power options - USB type C or Lipoly battery
  • Built-in battery charging when powered over USB-C
  • LiPoly battery monitor - LC709203 chip actively monitors your battery for voltage and state of charge / percentage reporting over I2C
  • Reset and DFU (BOOT0) buttons to get into the ROM bootloader (which is a USB serial port so you don't need a separate cable!)
  • Serial debug output pin (optional, for checking the hardware serial debug console)
  • STEMMA QT connector for I2C devices, with switchable power, so you can go into low power mode.
  • On/Charge/User LEDs + status NeoPixel with pin-controlled power for low power usage
  • Low Power friendly! In deep sleep mode we can get down to ~100uA of current draw from the Lipoly connection. Quiescent current is from the power regulator, ESP32-S3 chip, and Lipoly monitor. Turn off the NeoPixel and external I2C power for the lowest quiescent current draw.
  • Works with ESP-IDF, Arduino or CircuitPython

What's Included

  • 1x Adafruit ESP32-S3 Feather with 4MB Flash 2MB PSRAM - STEMMA QT / Qwiic
  • Headers (unsoldered)
