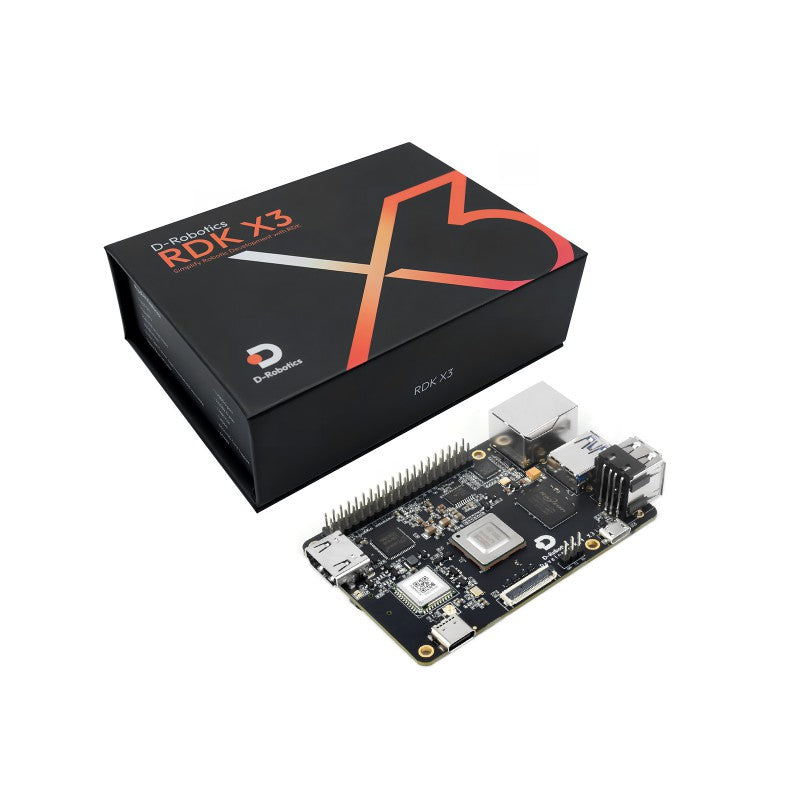

D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processor, 5Tops Edge Inference Capabilities.
The RDK X3 series delivers exceptional 5Tops edge inference capabilities. With standardized dimensions, the board interfaces seamlessly with other components, empowering developers to rapidly deploy intelligent products and robotic solutions.
Specifications
CPU
Quad-core ARM® Cortex® A53@1.5G
BPU
Dual-core Bernoulli Arch, 5Tops
RAM
4GB LPDDR4 RAM
Storage
TF card slot
Multimedia
H.265 (HEVC) Encoding and Decoding Main profile, L5.14K@60fps, JPEG Encoding and Decoding 16Mpixels
Sensor
MIPI CSI 2lane x 2
USB Host
USB Type-A 3.0 x 1, USB Type-A 2.0 x 2
USB Device
Micro USB 2.0 x 1
Display
1 x HDMI1.4 (up to 1080p60)
Wireless network
Wi-Fi 2.4/5GHz Bluetooth 4.2
Wired network
RJ45 interface
Others
1 x Debug UART, GPIO & I2C & UART & SPI & I2S & PWM (40PIN) x 2
