ElecFreaks GVS Raspberry Pi GPIO Shield
ElecFreaks GVS Raspberry Pi GPIO Shield
Regular price
$12.50 SGD
Regular price
Sale price
$12.50 SGD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

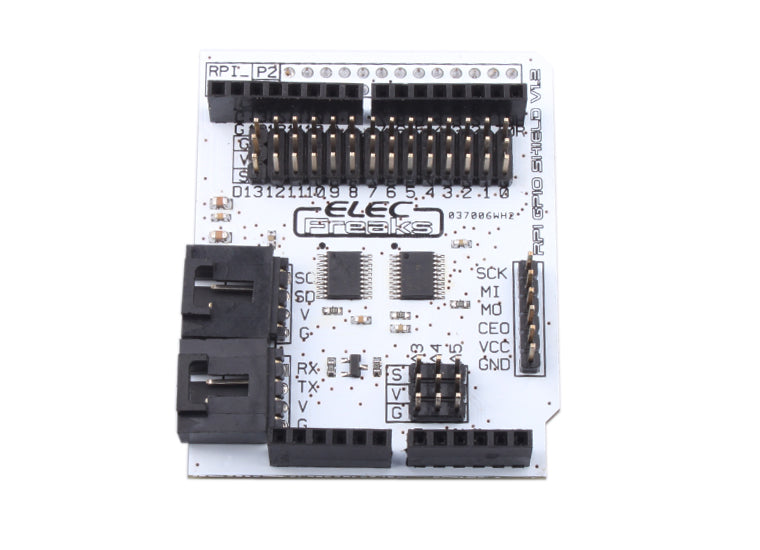

The RPI GPIO Shield turns Raspberry Pi GPIO into the normally-used Arduino I/O interface. The shield not only maintains most of the Arduino UNO I/O interface, but it also expands IIC interface. The RPI GPIO Shield has all the UNO I/O features, which can be used to drive LED, sensors, LCD and other electronic modules and components.
Features
- Plugs into the Raspberry Pi GPIO header
- Arduino-style I/O headers, compatible with Arduino shields
- Bidirectional level translator (TXS0108E) converts automatically between 3.3V for the Raspberry Pi and 5V for Arduino
- Extra IIC, UART (TX/RX), SPI and electronic brick (GVS) interfaces
- Supply: 5V, 700 mA typical
- Size: 60.24 x 48.36 mm, the same form factor as the Raspberry Pi
Pin map
| Raspberry Pi pin | Connects to |
|---|---|
| 3V3 | Arduino 3V3 |
| 5V | Arduino 5V |
| SDA | Arduino SDA |
| SCL | Arduino SCL |
| GND | GND |
| TX | Arduino D1 |
| RX | Arduino D0 |
| GPIO0 | Arduino D2 |
| GPIO1 | Arduino D3 |
| GPIO2 | Arduino D4 |
| GPIO3 | Arduino D5 |
| GPIO4 | Arduino D6 |
| GPIO5 | Arduino D7 |
| GPIO6 | Arduino D8 |
| GPIO7 | Arduino D9 |
| CE0 | Arduino D10 |
| MOSI | Arduino MOSI |
| MISO | Arduino MISO |
| SCLK | Arduino SCLK |
| CE1 | Arduino A3 |
Raspberry Pi header pins marked DNC are not connected. When fitting the shield, make sure its pins line up with the Raspberry Pi GPIO pins.
