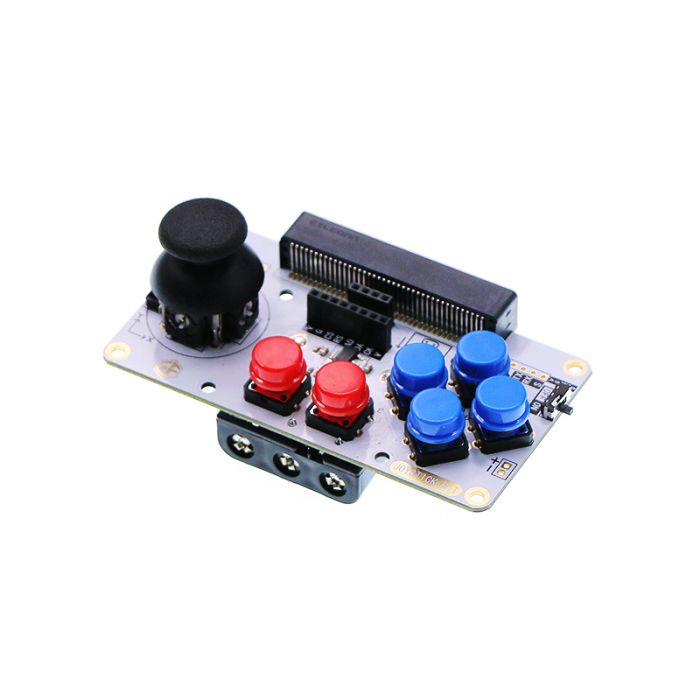

ElecFreaks Joystick:bit micro:bit Breakout Board

Joystick:bit is a game joystick breakout board for the micro:bit with a joystick and 6 buttons. The joystick's X and Y axes are read on micro:bit pins P0 and P1, and the buttons on P2. It also adds connectors for extra modules (GVS, IIC, SPI and UART), a built-in power switch and an external power connector.

Features

• Joystick and 6 programmable buttons
• GVS connectors (P3, P4, P6) for ElecFreaks Octopus electronic bricks; P3 and P4 support analog, PWM and digital signals for servos and sensors
• UART connector, compatible with common wireless modules such as HC08 and HC11
• IIC connector for 3.3V IIC sensors and devices
• SPI connector that fits the 1.8" TFT LCD module
• Internal power input: DC 3.9–4.5V
• External power input: DC 3.9–18V
• Programming: MakeCode, JavaScript, Python, Microsoft Touch Develop
• Size: 103 x 64 mm
• Weight: 54 g

Contents: 1 x Joystick:bit

Tutorial

• Joystick:bit V1 guide and example code (ElecFreaks wiki)
