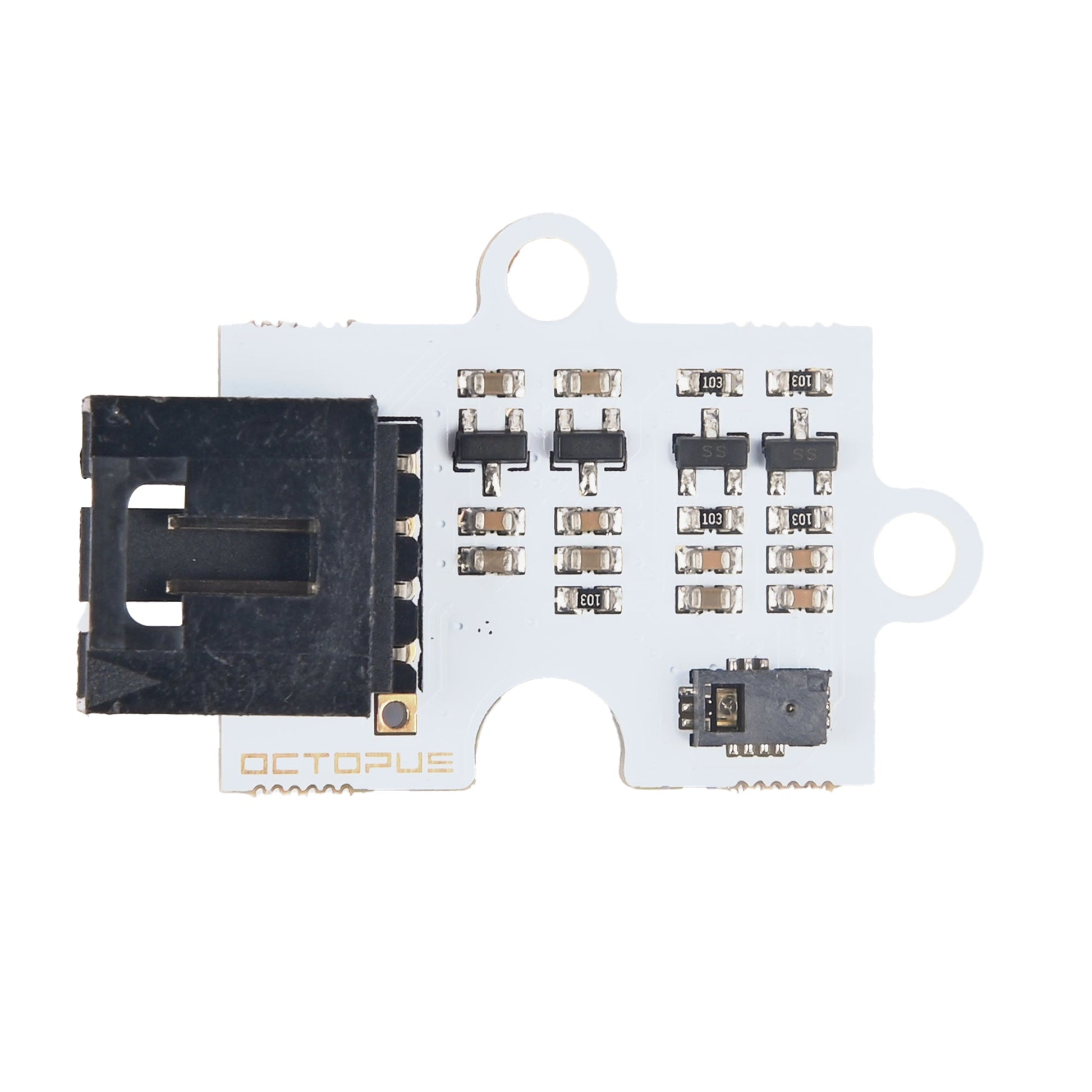

ElecFreaks Octopus Gesture Sensor Brick

Description

ELECFREAKS Octopus Gesture Sensor Brick is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including move up, move down, move left, move right, etc with a simple swipe of your hand.

Features

• Various main boards support: Freaduino UNO/ Arduino UNO/Freaduino Mega2560/Arduino Mega2560
• Works with micro:bit through an Octopus expansion board such as Sensor:bit, programmed in MakeCode with the ElecFreaks gesture extension
• Built-in proximity detection
• 9 Basic gestures: Up/Down/Right/Left/Forward/Backward/Clockwise/Count Clockwise/Wave
• Detection range: 5-10cm
• Ambient light immunity: < 100k Lux
• Power supply: 5V
• Working temperature -20℃ ~ 70℃
• Size: 23.48mm×31.28mm
• 3-pin connector for plug and play

micro:bit setup and sample code: Octopus Gesture Sensor wiki
