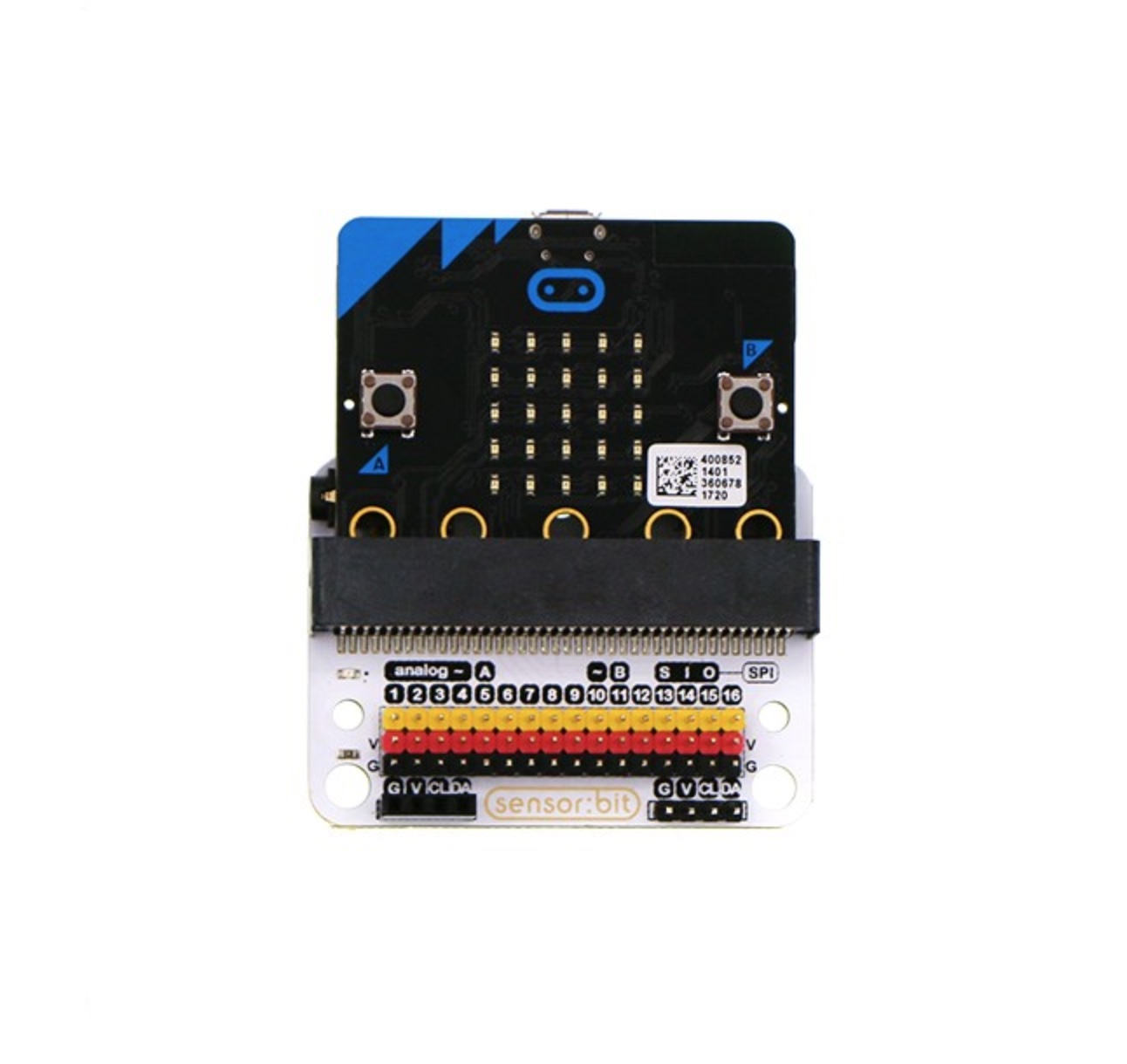

ElecFreaks Sensor:bit micro:bit Breakout Board

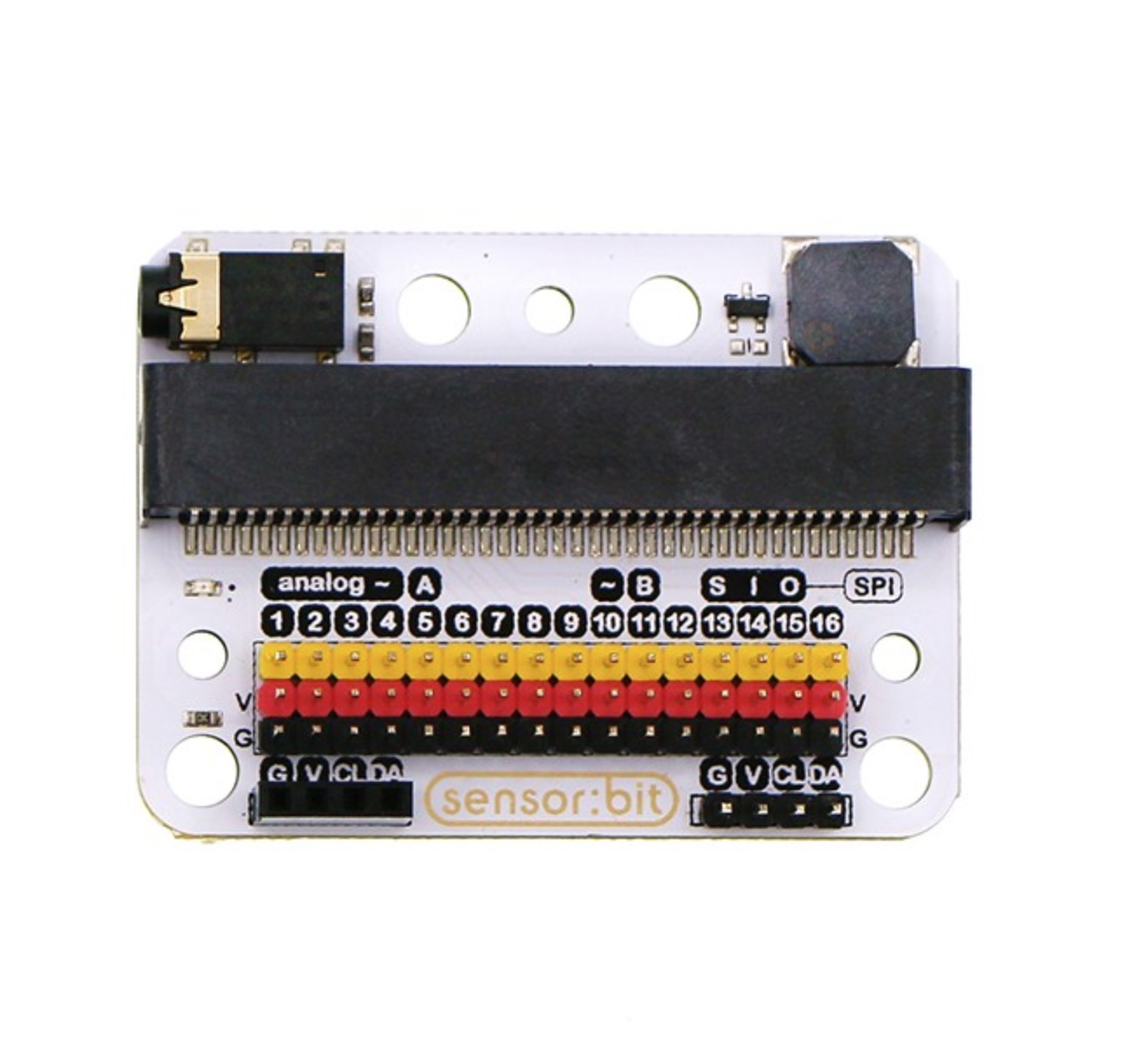

The sensor:bit is a GVS (ground, voltage, signal) breakout board for micro:bit, including an integrated buzzer and audio socket, as well as I2C male and female connectors.

Features

• 16-channel standard GVS port for 3V electronic brick modules such as LEDs and photocells
• Separate I2C headers (male and female) for I2C modules such as an OLED display or BME280 sensor
• Buzzer and audio jack, both on P0; plugging in headphones disconnects the buzzer automatically
• USB connection for power
• LEGO-compatible mounting holes

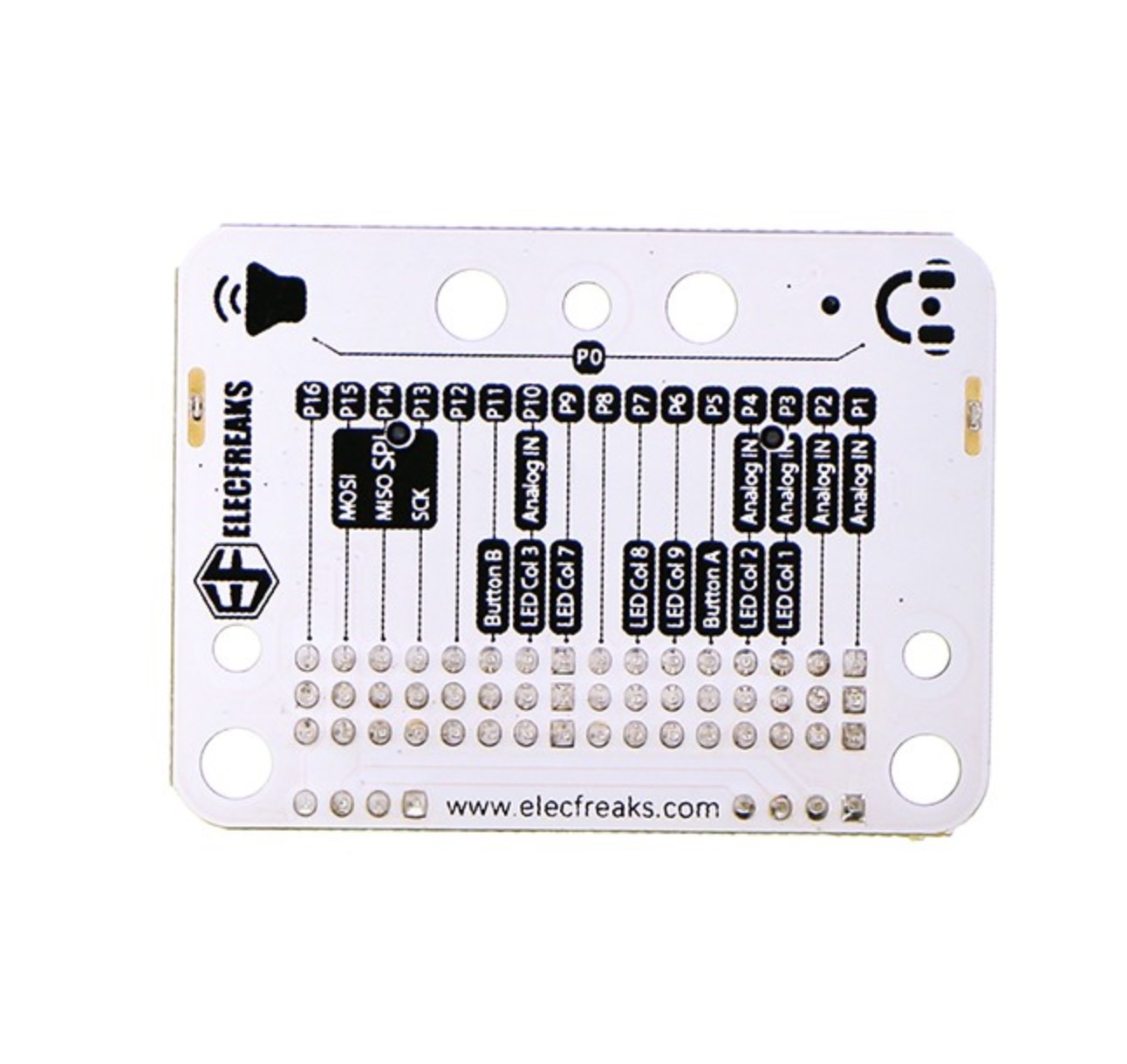

• Each IO port is labelled on the board

Specifications

• Working voltage: 2.7 ~ 3.3V
• Dimensions: 57mm x 42mm x 11mm

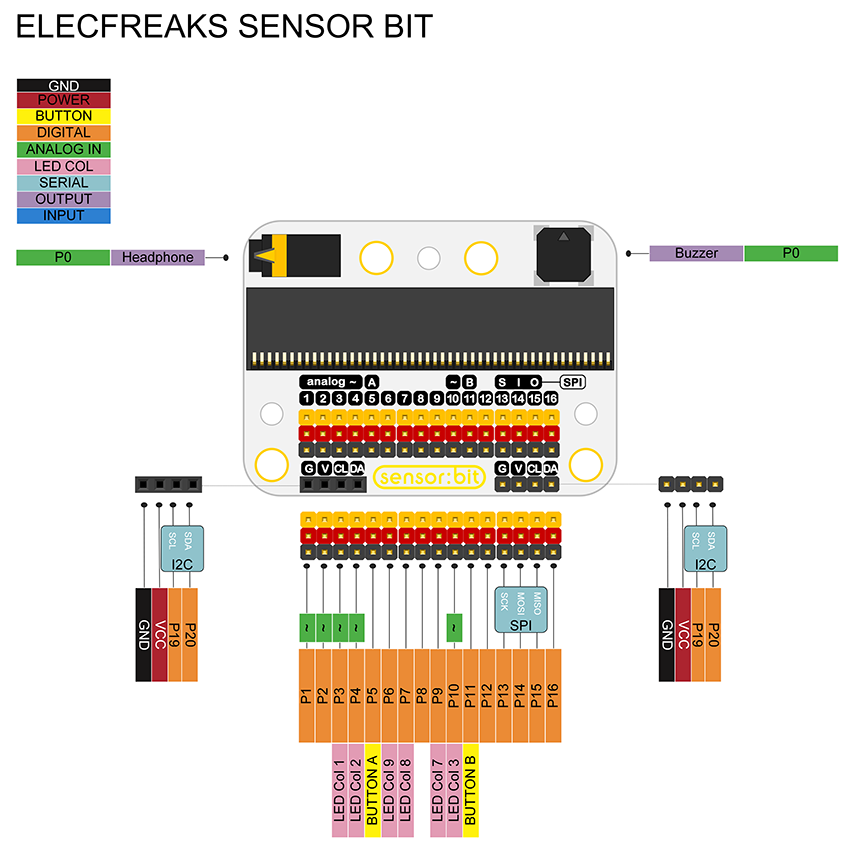

Pin definitions and a MakeCode quick-start example are on the ElecFreaks Sensor:bit (EF03415) wiki page.
