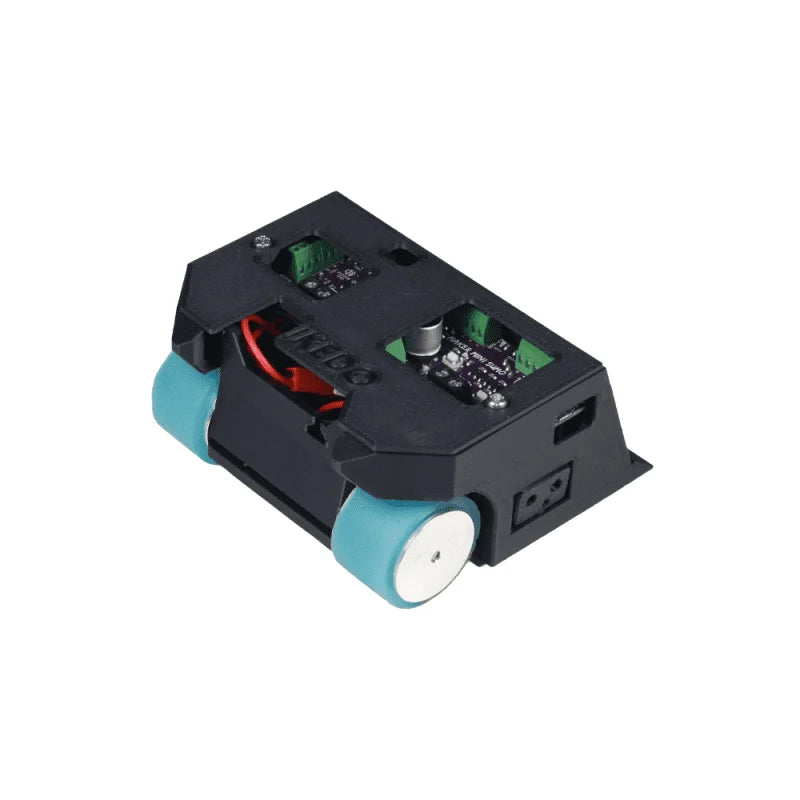

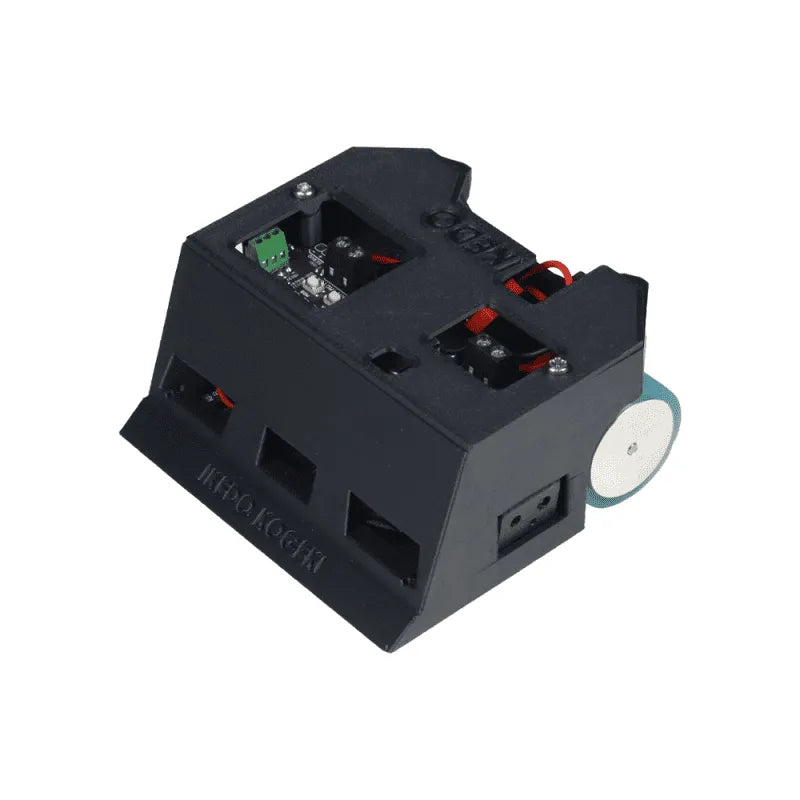

Ikedo Mini Sumo Robot V2

The Ikedo Mini Sumo Robot V2 is a robot construction kit from Cytron for beginners learning robotics and programming. It builds a 10 cm x 10 cm robot designed for 500 g mini sumo competitions, and comes with a step-by-step guide and sample code. Compared with the earlier Ikedo Starter Kit, V2 adds two more range sensors (five in total) and a redesigned chassis that protects the electronics.

Specifications

Features

• Auto and manual control modes (RC transmitter and receiver sold separately)
• On-board start button, plus a port for an external start module (not included)
• LED indicators for power, motors, opponent sensors and start button
• Programmable LED, 3-way DIP switch, potentiometer and piezo buzzer
• Port for an RC servo

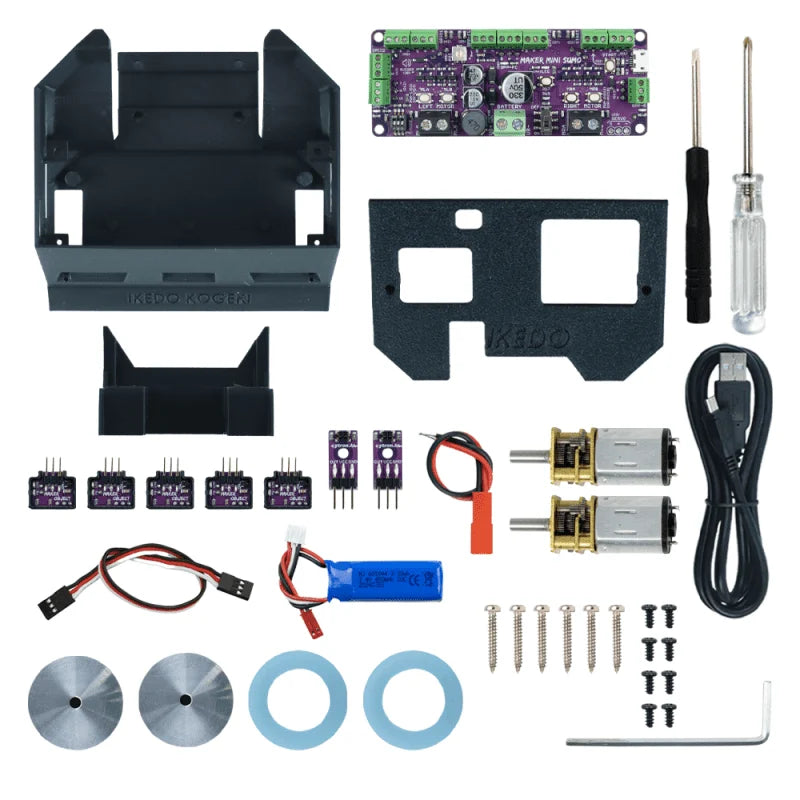

What's in the box

• 1 x Maker Mini Sumo controller
• 5 x Maker Object Sensors (opponent sensors)
• 2 x edge sensors
• 2 x 600 RPM 6V DC micro metal gearmotors
• 2 x silicone wheel sets (32 x 22 mm)
• 1 x 7.4V 450mAh LiPo battery
• 3D-printed chassis, top cover and motor bracket
• 1 x JST LiPo battery extension wire
• 1 x 3-way connector extension wire
• 4 x M3x6 self-tapping screws and 6 x M2.5x20 bolts
• 1 x 3 mm Phillips screwdriver and 1 x 2 mm flat-head screwdriver
• 1 x USB micro-B cable

Find out more on Cytron's product page.
