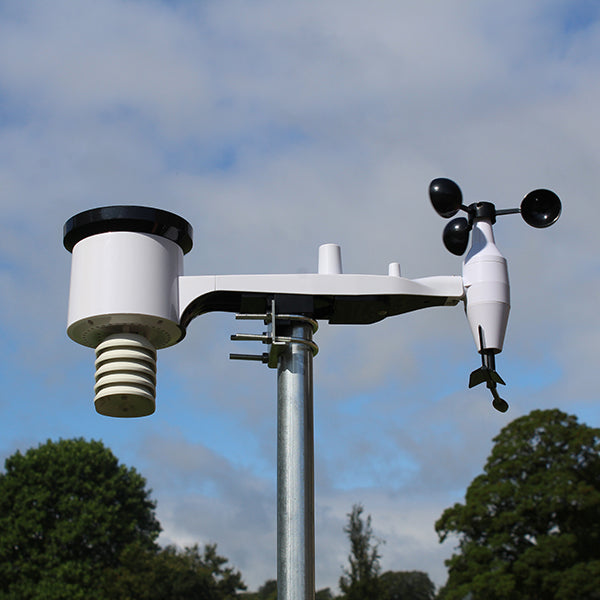

IoT@School WiFi Weather Station

Create your own environmental data and compare it with other weather stations around the globe through the IoT@School Exploratory. Use the ever-growing bank of IoT@School resources a find out how digital technologies and IoT can be used in the classroom.

Communicate and collaborate with schools around the world using the IoT@School collaborations blog and social media.

Connect the weather station to the IoT@School Exploratory through your WiFi network.

Sensors

• Air Temperature
• Pressure
• Rain Rate
• Rain Total
• Relative Humidity
• Solar radiation
• UV radiation
• Wind Direction
• Wind Speed
• Wind Gust
• Wind Rose

Specifications

• Solar Radiation: 0-2000 W/m2
• Accuracy:+/-15%
• Wind speed:0-50m/s(0-100mph)
• Accuracy:+/-1m/s(wind speed<5m/s) +/-10%(wind speed>5m/s)
• Temperature range: -40°C to 60°C
• Accuracy:+/-1°C
• Rel.humidity range:1%-99%
• Accuracy:+/-5°C
• Rain volume:0-9999mm
• Accuracy:+/-6°C
• Resolution:0.3mm(if rain volume<1000mm) 1mm(if rain volume>1000mm)

Dimensions

• Max Width – 43cm
• Max Depth – 15cm
• Max Height – 20cm
