Keybow 2040 - Clicky Keys

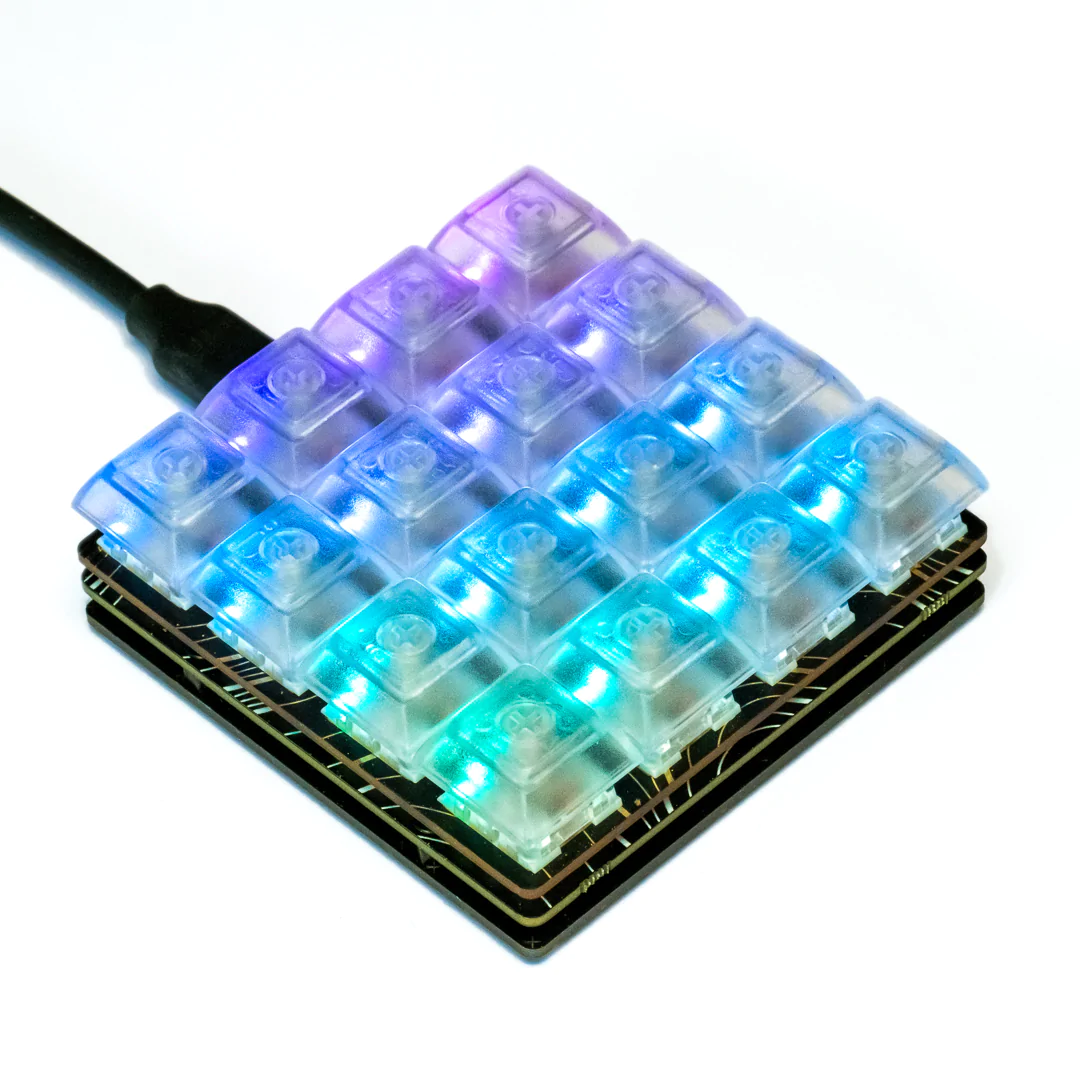

A luxe all-in-one 16 key mini mechanical keyboard with hot swap clicky or linear switches and per key customisable RGB lighting.

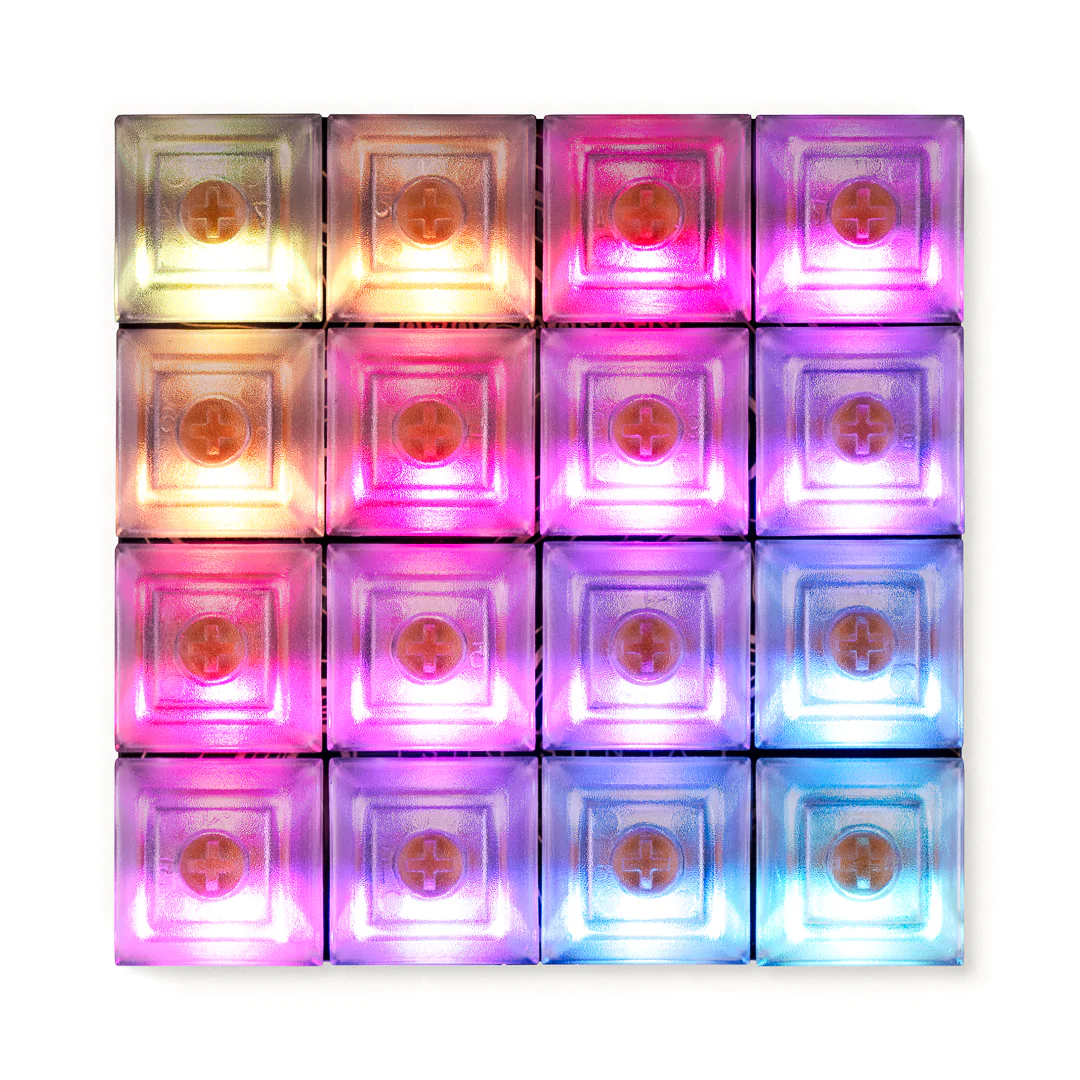

Keybow evolves into its final form with a 4x4 grid of keys, and low latency input, high reliability and a super slim footprint courtesy of the brand new RP2040 chip from Raspberry Pi. The RP2040 microcontroller chip is incorporated neatly into the Keybow 2040 PCB, so it's a tidy all-in-one unit. Added are Kailh Speed switches and smart transparent DSA keycaps that look incredible when lit up with the fully customisable per-key RGB lighting.

You could use Keybow 2040 as a streaming deck for adjusting in-stream audio settings and switching easily between OBS scenes, as a capable midi controller for triggering clips, tracks, or effects in Ableton Live or as a customisable hotkey pad for programs like Photoshop. It's also handy for pasting frequently-used text or code snippets.

Features

• Powered by RP2040
• 2MB of flash memory.
• 16 (4x4 matrix) of low profile keys connected directly to GPIOs
• Kailh hot-swap switch sockets (for Cherry MX-compatible switches)
• Per key RGB LEDs driven by an IS31FL3731 PWM LED matrix driver
• A BOOTSEL button (this can also be used as a user switch)
• A reset button!
• Powered and programmable via USB-C
• Dimensions: approx 76mm x 76mm x 30mm (L x W x H, including switches, keycaps and feet)
• No soldering required!
• Comes with CircuitPython pre-installed
• PMK CircuitPython library
• Schematic

What's included

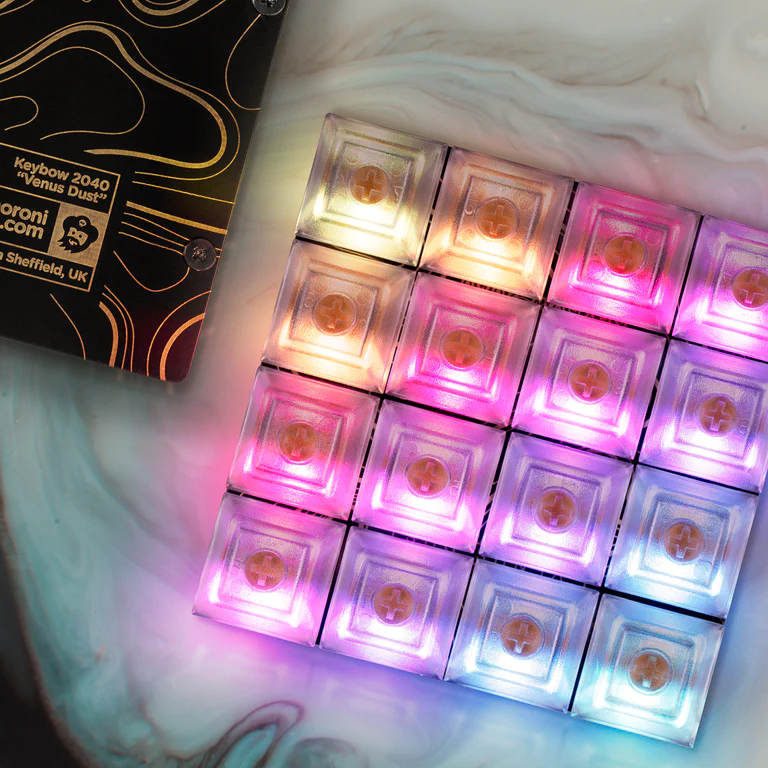

• Keybow PCB base layer (gold and black, reversible, four small round holes).
• Keybow PCB middle layer (white and black, houses the RP2040, the Kailh hot swap switch sockets, the LEDs and all the other electronic gubbins).
• Keybow PCB top layer/switch plate (gold and black, reversible, sixteen big square holes).
• Bag containing tiny standoffs and screws - you'll need eight screws and four standoffs.
• 16 Kailh gold (clicky), silver (quiet) or copper (tactile) switches.
• 16 transparent, low profile keycaps.
• 4 rubber feet
