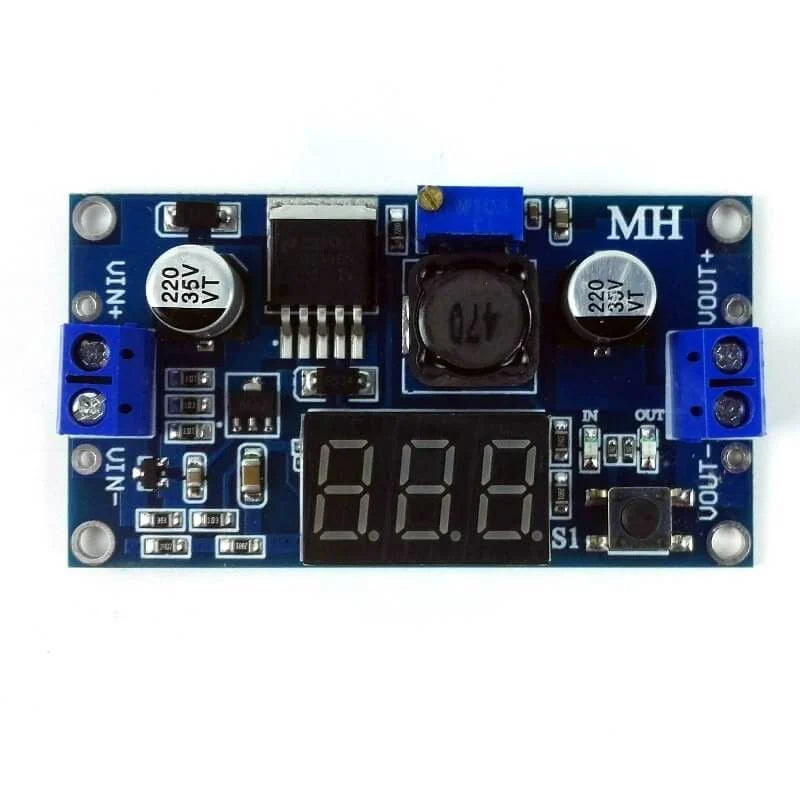

LM2596 3A Buck Module with Display
LM2596 3A Buck Module with Display
Regular price
$5.50 SGD
Regular price
Sale price
$5.50 SGD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
An adjustable step-down (buck) converter module based on the LM2596, for reducing a higher DC voltage, such as a 12V adapter or a battery, to a lower regulated voltage, such as 5V for USB devices. A 3-digit 7-segment display shows the input or output voltage (switched with a push button), so the output can be set without a multimeter.
Specifications
| Type | Switching buck converter, 65 kHz |
|---|---|
| Input voltage | 3.2V to 40V DC |
| Output voltage | 1.25V to 35V DC, adjustable with a multiturn potentiometer (clockwise to increase) |
| Output current | 2A continuous, 3A peak (use a heatsink above 2A continuous) |
| Output ripple | Under 30mV |
| Efficiency | Up to 92% |
| Rated power | 10W |
| Operating temperature | -45°C to +85°C |
| Dimensions | 66 × 36 × 12 mm |
Note: the input voltage should be at least 1.5V higher than the output voltage.
Package contents
- 1 x LM2596 3A buck converter module with display
