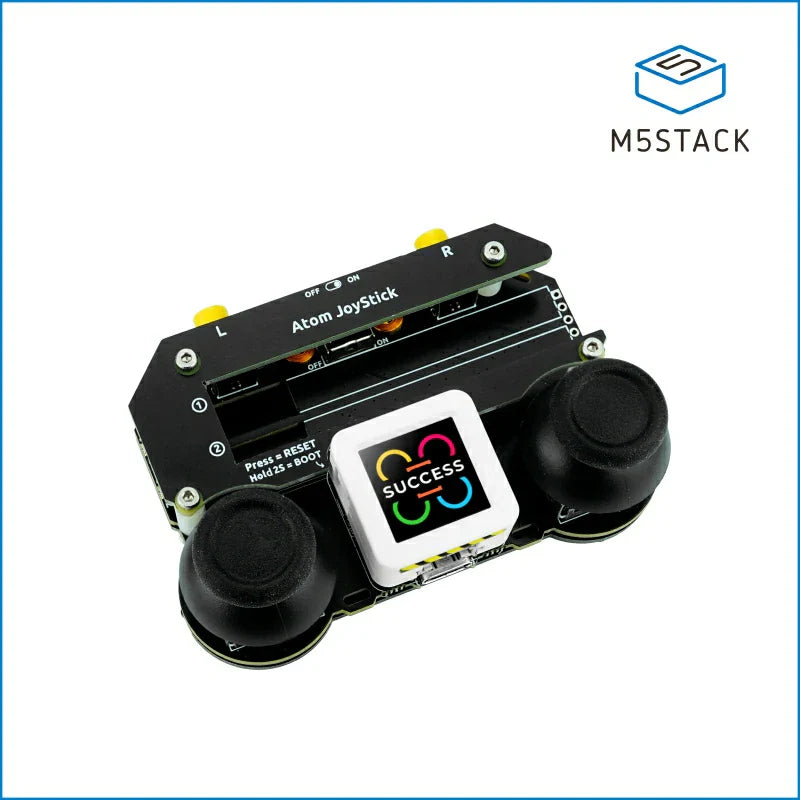

M5Atom Joystick with M5AtomS3

Description

M5Atom Joystick is a versatile programmable dual-joystick remote controller featuring the AtomS3 as the main controller, with an STM32 handling co-processing functions. It is equipped with two 5-way joysticks with hall sensors, two function buttons, and built-in RGB LEDs for human-machine interaction and status indication. The device includes two high-voltage battery charging circuits. It comes pre-loaded with the Stamp Fly control firmware and communicates with Stamp Fly via the ESP-NOW protocol. The firmware source code is open-source. This product is suitable for drone control, robot control, smart cars, and various DIY projects.

Product Features

• STM32F030F4P6
• Equipped with M5AtomS3
• Compatible with Atom Lite, Atom Matrix, AtomS3 Lite, AtomS3
• Dual joysticks, dual buttons, toggle switch
• WS2812 RGB LEDs
• Dual high-voltage lithium battery charging circuits
• Battery detection

Includes

• 1x Atom JoyStick
• 1x 300mAh high-voltage lithium battery
