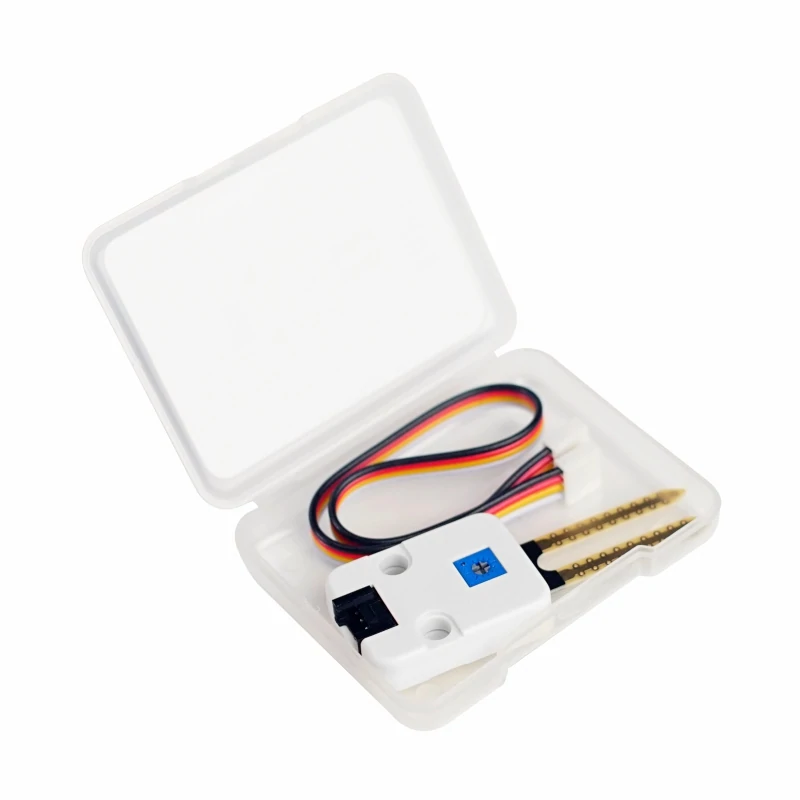

M5Stack Earth Moisture Sensor Unit Analog and Digital Output

M5Stack Earth Moisture Sensor Unit Analog and Digital Output

Regular price $5.40 SGD
Regular price Sale price $5.40 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

EARTH unit is a Soil Moisture Sensor for measuring the moisture in soil and similar materials.

The soil moisture sensor usage is pretty straight forward, the two large exposed pads function as probes for the sensor, together acting as a variable resistor.

The higher moisture that is in the soil means the better the conductivity between the two so that the sensor will result in a lower resistance, and a higher SIG out.

You can read the moisture in soil by using the ADC. Inside this Unit we've added an extra potentiometers to change the measurement range.

Electrode of the unit is not anti-corrosive, or waterproof, for POC purpose only. Pls do NOT put it in humidity environment for a long while.

Product Features

  • Adjustable threshold, including 10K adjustable resistor
  • Analog & Digital output
  • GROVE interface, support UIFlow and Arduino
  • Two Lego-compatible holes

Includes

  • 1x EARTH unit
  • 1x GROVE Cable

Applications

  • Potted soil moisture monitoring

Specifications

Resources Parameter
Net weight 5g
Gross weight 18g
Product Size 64.4*24.1*8.1mm
Product Size 67*53*12mm

Learn and Documents

>>>>> Documents <<<<<



Smart Planting System

Smart Planting System

  • Building a smart planting system using M5Stack to monitor the lights, humidity, temperature, watering your plant automatically.

Hand Hygienics

Hand Hygienics

  • Hand Hygienics aims to reduce spread of Covid-19 through contact.
