M5Stack
M5Stack Gesture Recognition Sensor
M5Stack Gesture Recognition Sensor
Regular price
$24 SGD
Regular price
$24
Sale price
$24 SGD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
-

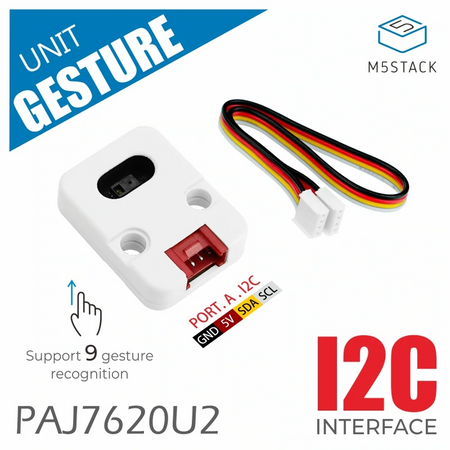

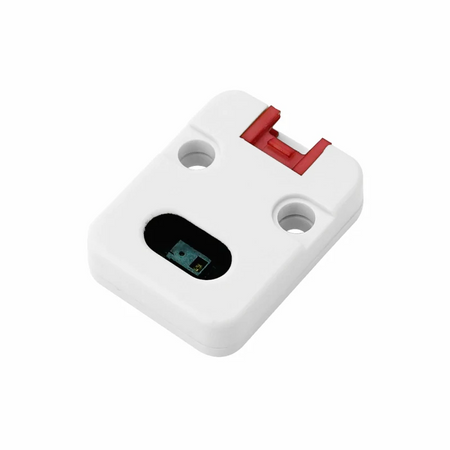

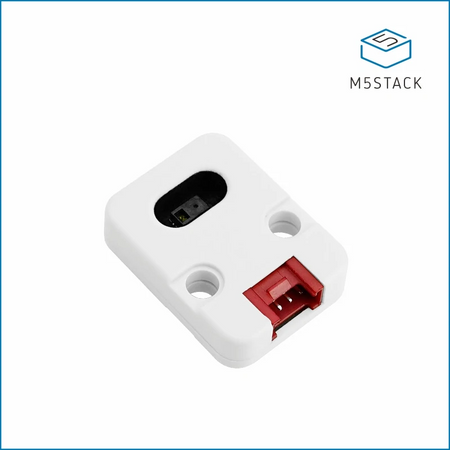

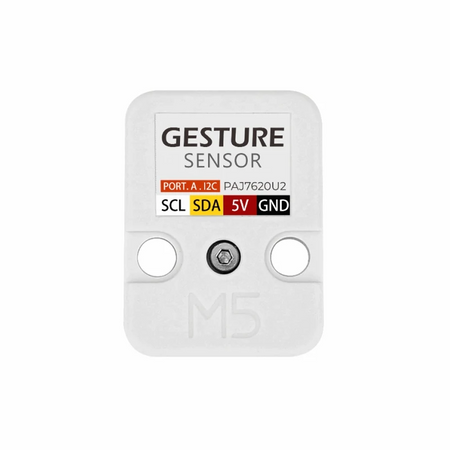

PAJ7620U2 touchless Gesture Moving Recognition Sensor recognises up to 9 gestures. It's a touchless 3D gesture recognition sensor via the
I2C
interface that integrates withPAJ7620U2
. You could feel the charm of9 kinds of gesture recognition
by default program. In addition to adding more complex gestures, the recognition rate is up to 240Hz with higher anti-interference capability. This sensor is reliable for its recognition process is intuitive and has low power consumption (operating current only 2.2mA) that allows you to control a robot in accordance with your hand's movement. This is particularly useful in interactive applications. -
Supports 9 gestures:
- Up, Down, Left, Right, Front, Back, Clockwise, Counter-clockwise, Quick wave
Product Features
- PAJ7620U2 gesture sensor / I2C interface
- Recognizable gestures up to 9 kinds
- Faster, more accurate
- Support for customizing and adding recognition gesture combinations (support developing)
- Effective recognition distance: 5cm-15cm
- Embedded infrared LED and optical lens, be able to work in low-light even dark environment
- Development Platform:
- Arduino, UIFlow

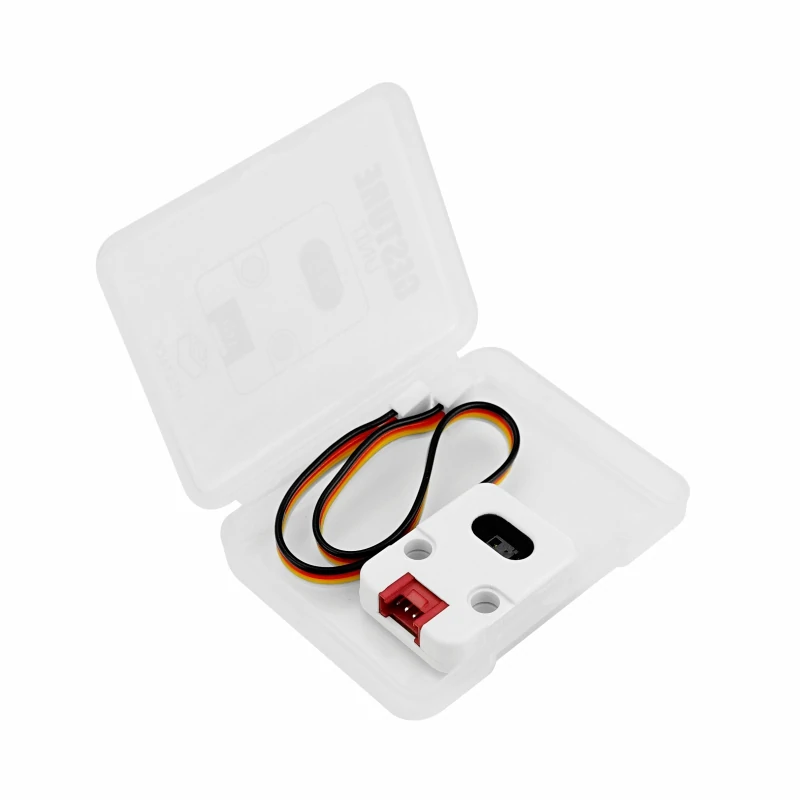

Includes
- 1x UNIT Gesture
- 1x HY2.0-4P Cable
Applications
- Touchless remote control
- Robot interaction
- Human-Computer Interaction
- Gesture light control
Specifications
Specifications | Parameters |
---|---|
Gesture recognition frequency | Typical value: 120Hz, maximum 240Hz |
Support gestures | 9 built-in + 4 software extensions + support software algorithm expansion |
Effective recognition distance | 5cm-15cm |
R Ambient light immunity | <100k Lux |
Communication interface | I2C, addr: 0x73 |
Working current | 2.2mA |
Net weight | 4.3g |
Gross weight | 16.4g |

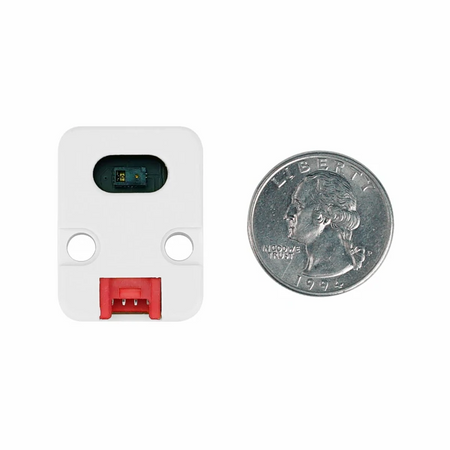

Product size | 24 * 32 * 8mm |
Packing size | 67 * 53 * 12mm |
