M5Stack

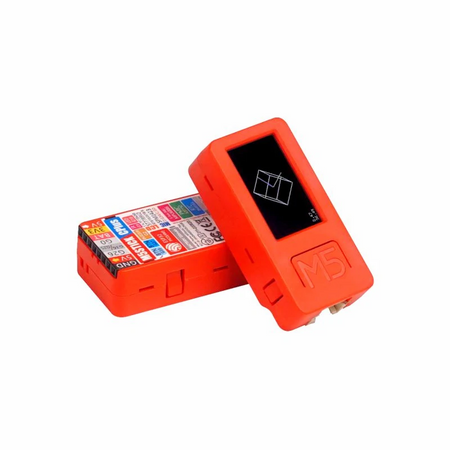

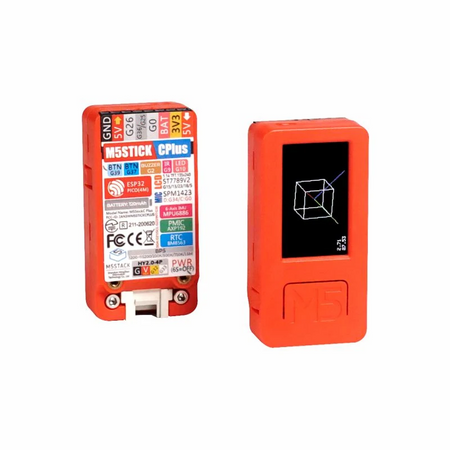

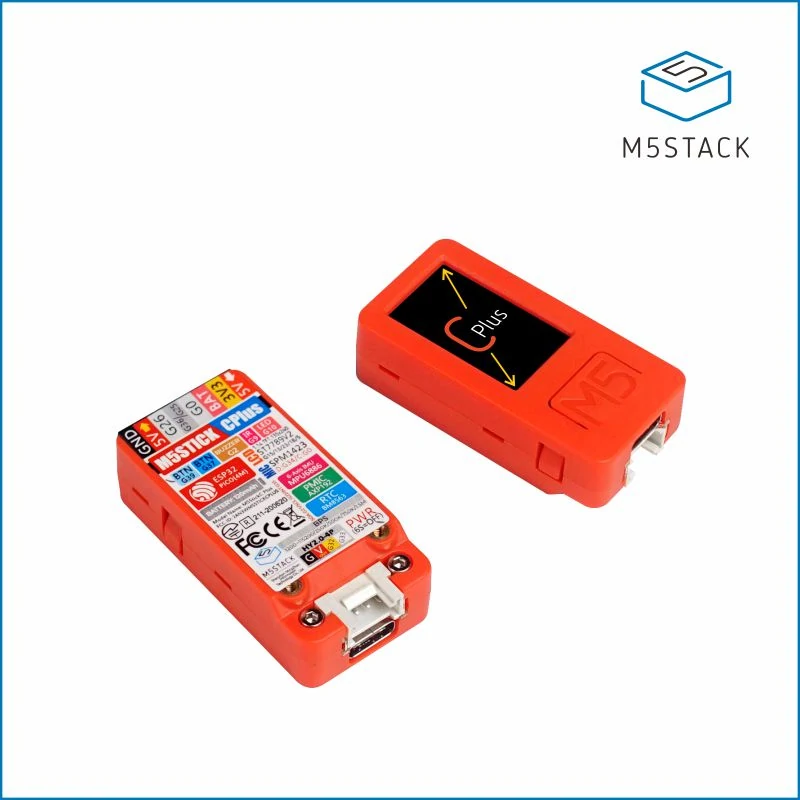

M5StickC Plus ESP32-PICO Mini IoT Development Kit

M5StickC Plus ESP32-PICO Mini IoT Development Kit

Regular price $42 SGD
Regular price $42 Sale price $42 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • M5StickC PLUS is powered by ESP32-PICO-D4 with Bluetooth 4.0 and WiFi and is an upgrade of the original M5StickC with a bigger screen .It is a portable, easy-to-use, open source, IoT development board. This tiny device will enable you to realize your ideas, enrich your creativity, and speed up your IoT prototying. Developing with M5StickC PLUS takes away a lot of the pains from the development process. M5StickC Plus is one of the core devices in M5Stacks product series. The compact body is integrated with rich hardware resources, such as infrared, RTC, Microphone, LED, IMU, Buttons, PMU,etc. Improvements from the regular StickC are a buzzer, bigger screen (1.14-inch, 135 * 240 resolution LCD Screen) and more stable hardware design. This revision increases the display area by 18.7%, and the battery capacity from 95mAh to 120mAh. It also supports the HAT and Unit family of products.
  • Power switch operation:
    • Power on:Press power button for 2 seconds
    • Power off:Press power button for 6 seconds
  • Notice:
    • Baud rate supported by M5StickC Plus: 1200 ~115200, 250K, 500K, 750K, 1500K
    • G36/G25 share the same port, when one of the pins is used, the other pin should be set as a floating input
    • For example, to use the G36 pin as the ADC input, Configuration the G25 pin as FLOATING
    • The input range of VBUS_VIN and VBUS_USB is limited to 4.8-5.5V, and the internal battery will be charged through AXP192 power management when VBUS is powered.

setup(){M5.begin();pinMode(36, INPUT); gpio_pulldown_dis(GPIO_NUM_25); gpio_pullup_dis(GPIO_NUM_25); }

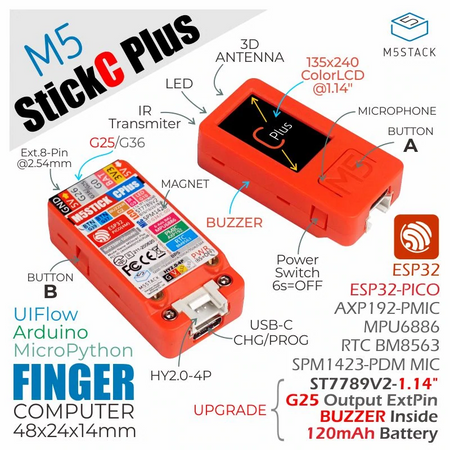

Product Features

  • ESP32-based support BLE 4.2 and WiFi
  • Built-in 6-Axis IMU
  • Red LED
  • IR transmitter
  • Microphone
  • RTC
  • Buttons, LCD(1.14 inch)
  • Built-in Lipo Battery
  • Extendable Socket
  • Built-in Passive Buzzer
  • Wearable & Wall mounted
  • Development Platform UIFlow MicroPython Arduino

Includes

  • 1x M5StickC Plus

Applications

  • Internet of things terminal controller
  • Wearable devices
  • Stem education product
  • DIY creation

USB Drive Problems

  • UnitV/M5StickV/M5StickC/ATOM may not work without driver in some systems. Users can manually install FTDI driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, decompress it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).



Specifications

Resources Parameter
ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory 4MB
Power Input 5V @ 500mA
Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button Custom button x 2
LED RED LED
MEMS MPU6886
Buzzer built-in buzzer
IR Infrared transmission
MIC SPM1423
RTC BM8563
PMU AXP192
Battery 120 mAh @ 3.7V
Antenna 2.4G 3D Antenna

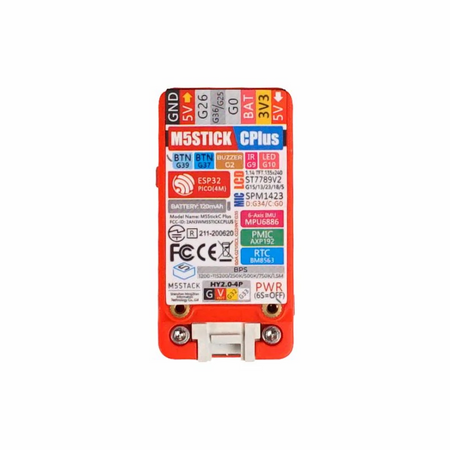

PIN port G0, G25/G36, G26, G32, G33
Operating Temperature 0°C to 60°C
Net weight 15g
Gross weight 21g
Product Size 48.2*25.5*13.7mm
Package Size 65*25*15mm
Case Material Plastic ( PC )

Learn and Documents

>>>>> Documents <<<<<



Santa Tracker using M5StickC Plus for an M5Stack Christmas

  • Who isn't waiting for Santa? Well, using an M5StickC Plus, you can track where is Santa is while he is delivering gifts.
