Makeblock mBot2 / Neo (with CyberPi)
Makeblock mBot2 / Neo (with CyberPi)
Description

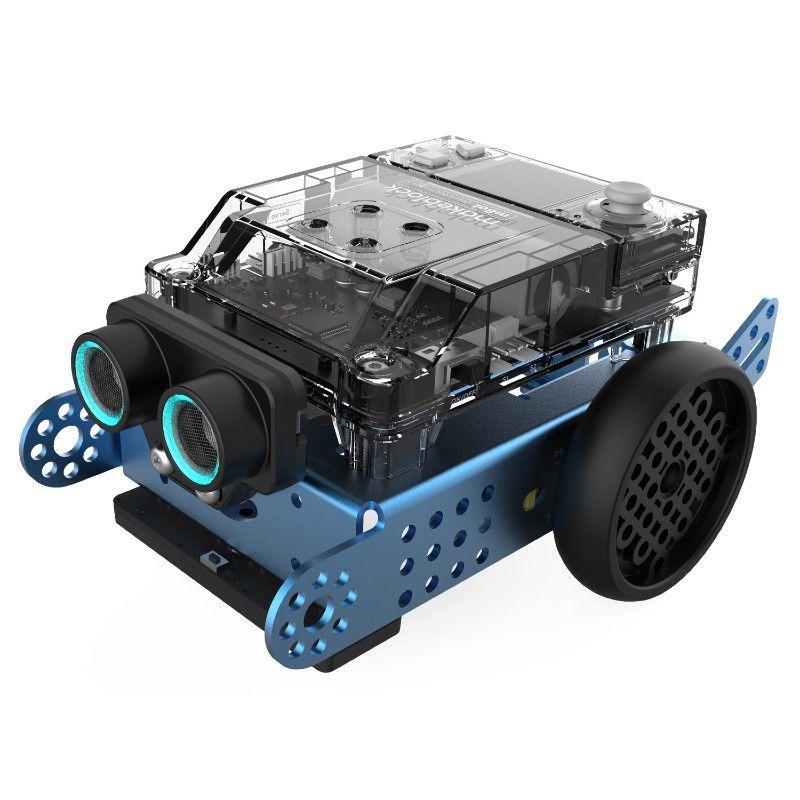

mBot2 is a next-generation educational robot designed with extended capabilities, starting as an entry-level solution in lower secondary education and going all the way to upper secondary and beyond.

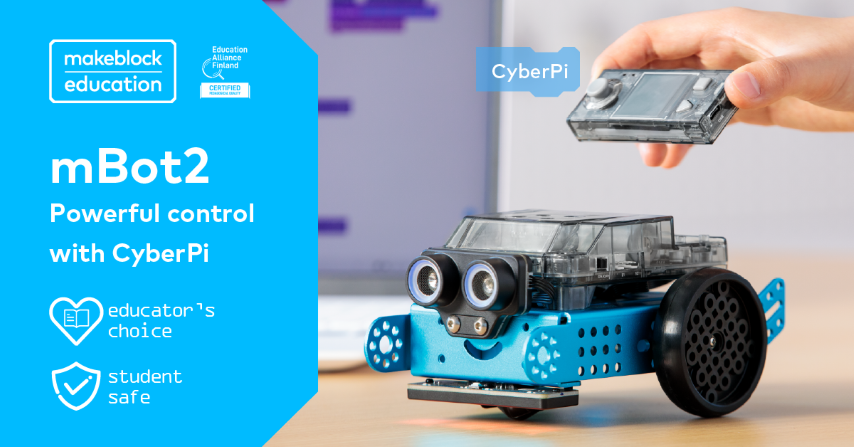

mBot2 is powered by CyberPi, an educational microcontroller enhanced with network capabilities, built-in sensors and much more. mBot2 is designed for students to carry out interactive and smart lessons that are engaging, fun and reflecting real-world applications with cutting-edge technologies, including robotics, AI, IoT and Data Science. With mBlock’s enhanced coding learning experience, mBot2 allows students and educators to begin with the block-based coding approach, and seamlessly transition into object-oriented coding with Python, all in the same environment.
Key Features
- Powered by CyberPi: CyberPi is a powerful and versatile microcontroller for education. Its integrated sensors, full-color display and Wi-Fi communication capabilities allow a wide range of applications on curriculum topics for Computer Science, Robotics, Data Science and Artificial Intelligence, in connection with other areas of the curriculum such as Math, Physics, etc.
-
Precision Control: The encoder motors in mBot2 can be precisely controlled by their rotation, speed and position, making possible the integration of principles in Math, Physics and Engineering.
- Enhanced:mBot2 comes with the next-generation of the ultrasonic sensor, which includes ambient illumination, and the Quad RGB sensor, which uses 4 color sensors simultaneously to detect colors and follow lines. This gives them more accurate performance and consistency. mBot2 can be further expanded with the Makeblock Education’s wide
- variety of structural parts and mBuild smart electronic
Specifications
Control board | CyberPi |
Processor | ESP32-WROVER-B |
SPI Flash memory |
8MB |
Store multiple programs simultaneously | 8 |
Support multi threading | yes |
Wireless communication | Bluetooth, Wi-Fi and Wi-Fi LAN |
Inputs and onboard sensors | 5-way joystick Button x2 Reset button Light sensor Microphone Gyroscope-accelerometer |
Outputs | 1.44″ full color display Speaker RGB LED x5 |
Expandable electronic modules | mBuild port x1, connect 10+ components in series |
Additional interfaces | 2-pin interface x2 3-pin interface x4 |
