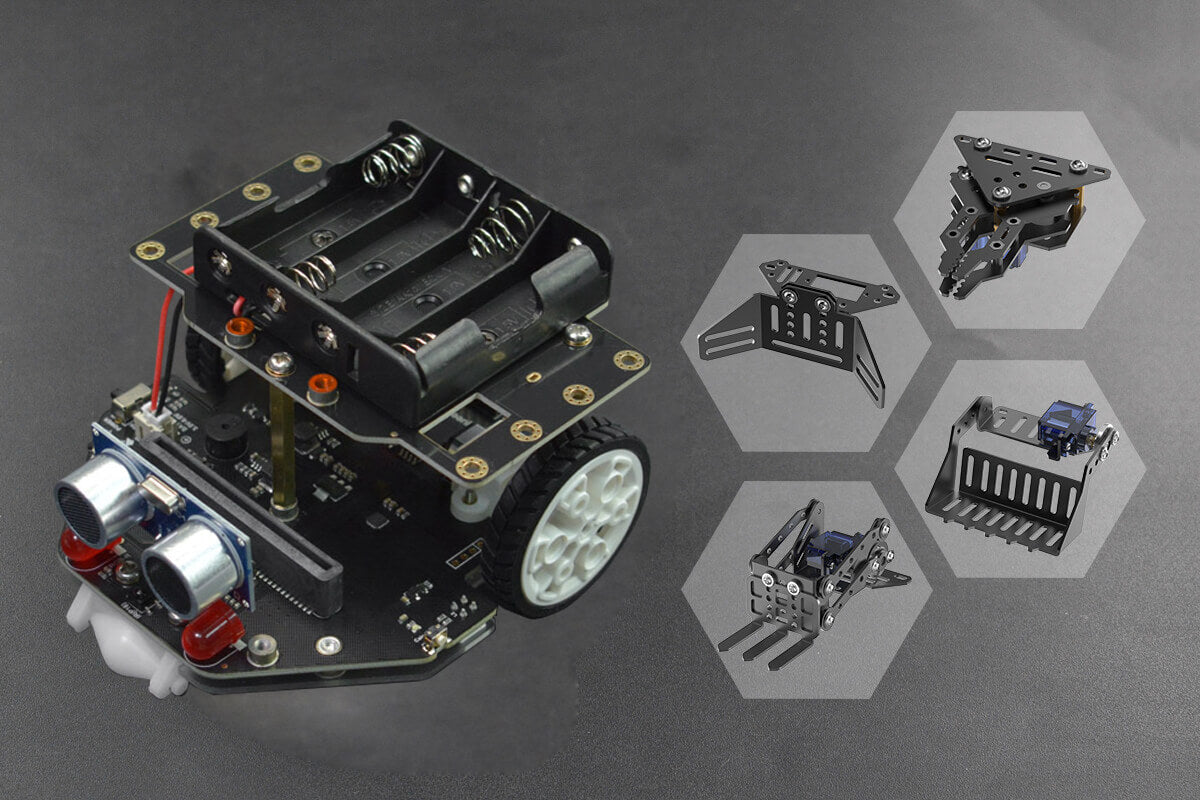

micro:Maqueen Plus V2 (NiMH Rechargeable Battery)

Maqueen Plus V2 is the latest version of the STEAM educational robot Maqueen Plus. Optimized with more expansion ports, larger capacity power supply and larger body, it is fully compatible with more peripheral components like HuskyLens AI camera, Maqueen Mechanic Kits, which makes it an accessible STEAM robot teaching tool for primary and secondary students. Maqueen Plus V2 is not only suitable for classroom teaching, but also can be used for after-school extended exercises and robot competitions.

Besides all the functions of Maqueen Lite, it offers richer and more flexible functions and stronger performance. Whether you have ever used Maqueen Series products or not, you’ll find it very easy to get started.

Features

• No complex assembly, get started in minutes
• More IO expansion ports: 3.3V IOx7, 5V IOx3, I2Cx3
• 5 line-tracking sensors, reliable and flexible
• Larger body, more flexible expansion methods
• Supports 1.2V Ni MH battery or 1.5V alkaline battery
• Works well with Huskylens AI Camera
• Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.
• Frosted acrylic protective plate at the bottom
• Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car

Specifications

• Power Supply: 1.5V AA alkaline battery x4 or 1.2V AA Ni-MH battery x4
• Support micro:bit V1 and V2
• N20 All-metal Gear Motor x2
• Motor Reduction Ratio is 1:150
• Motor Rated Rotation Speed: 133 rpm
• Buzzer x1
• 5V IO (P0 P1 P2) x3
• 3.3V IO (P0 P1 P2 P8 P9 P12 P16) x7
• 3.3V I2C x2
• 5V I2C x1
• Large Size LED Car Lights x2
• RGB Ambient Lights x4
• Line-tracking Sensor x5
• Line-tracking Sensor with One-key Calibration
• IR Receiver x1
• SRO4 Ultrasonic Module x1
• Dimension: 136mm×65mm/5.35×2.56"

What's Included

• 1x Maqueen Plus V2 (AA battery) Vehicle body
• Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery)
• H-SR04 Ultrasonic Sensor x1
• Line-tracking Map x1
• micro:Maqueen Mechanic: (if bought with Mechanic option)
  • Loader Servo Panel x1
  • Loader Bucket x1
  • Pan-tilt-zoomMount Plate x2
  • Trolley Plate x1
  • Ultrasonic MountHolder x1
  • Arm Servo Base x1
  • Arm Baseplate x1
  • Arm Linkage x3
  • Arm Plate x1
  • Servo Arm Linkage x1
  • Forklift Plate x1
  • Gripper Upper Arm x2
  • Gripper DrivenForearm x1
  • Gripper ServoForearm x1
  • Gripper Panel x1
  • M3*35mm Copper Bolt x2
  • M3*25mm Copper Bolt x2
  • M3*15mm Copper Bolt x6
  • M3*17mm Copper Bolt x3
  • 9g servo x2
  • M2.5*5mm nut x12
  • M3*5mm nut x45
