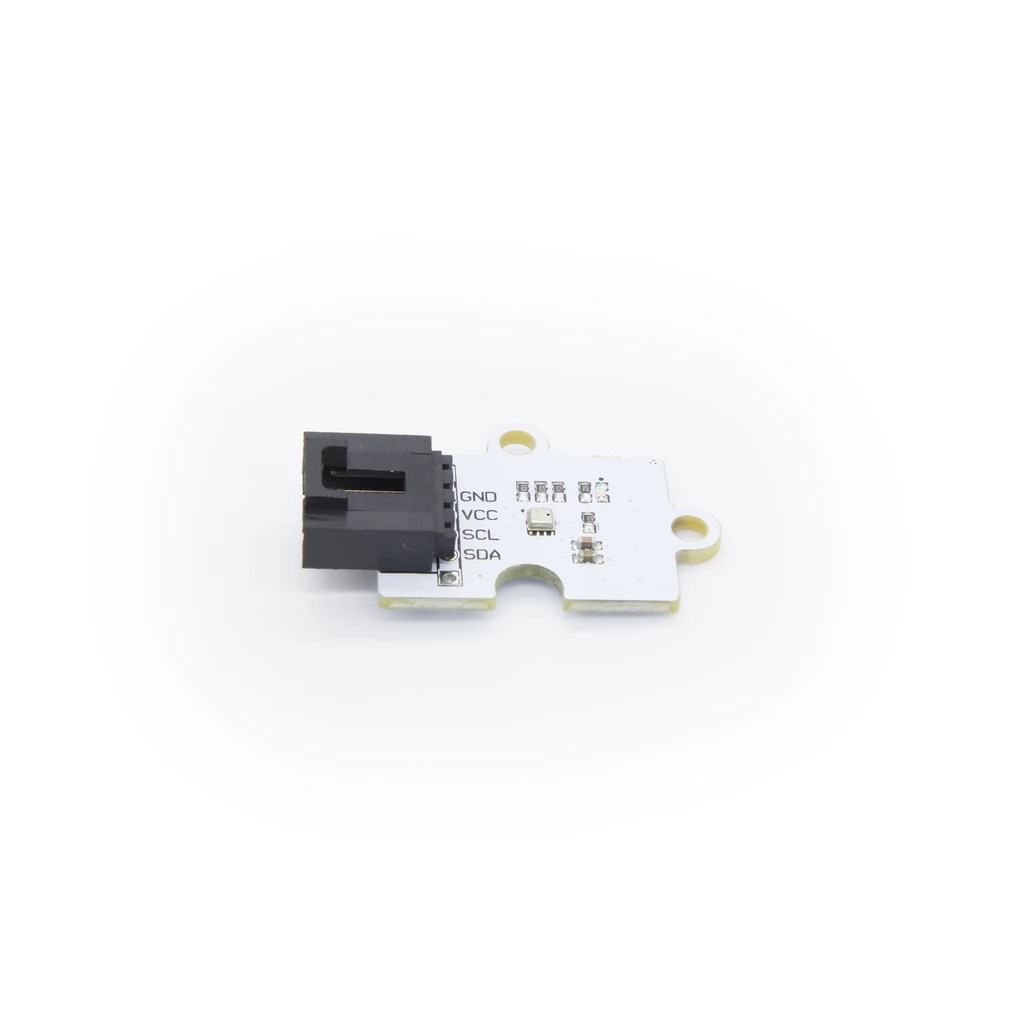

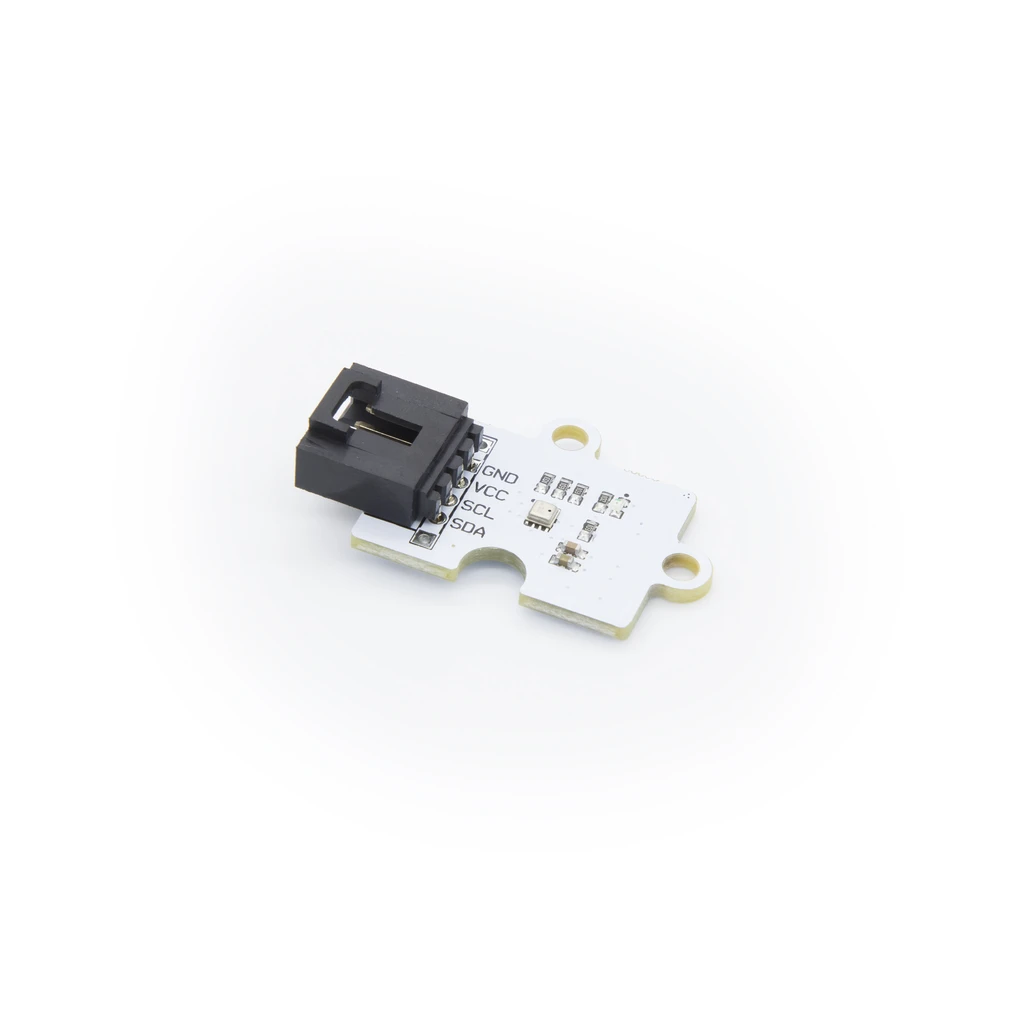

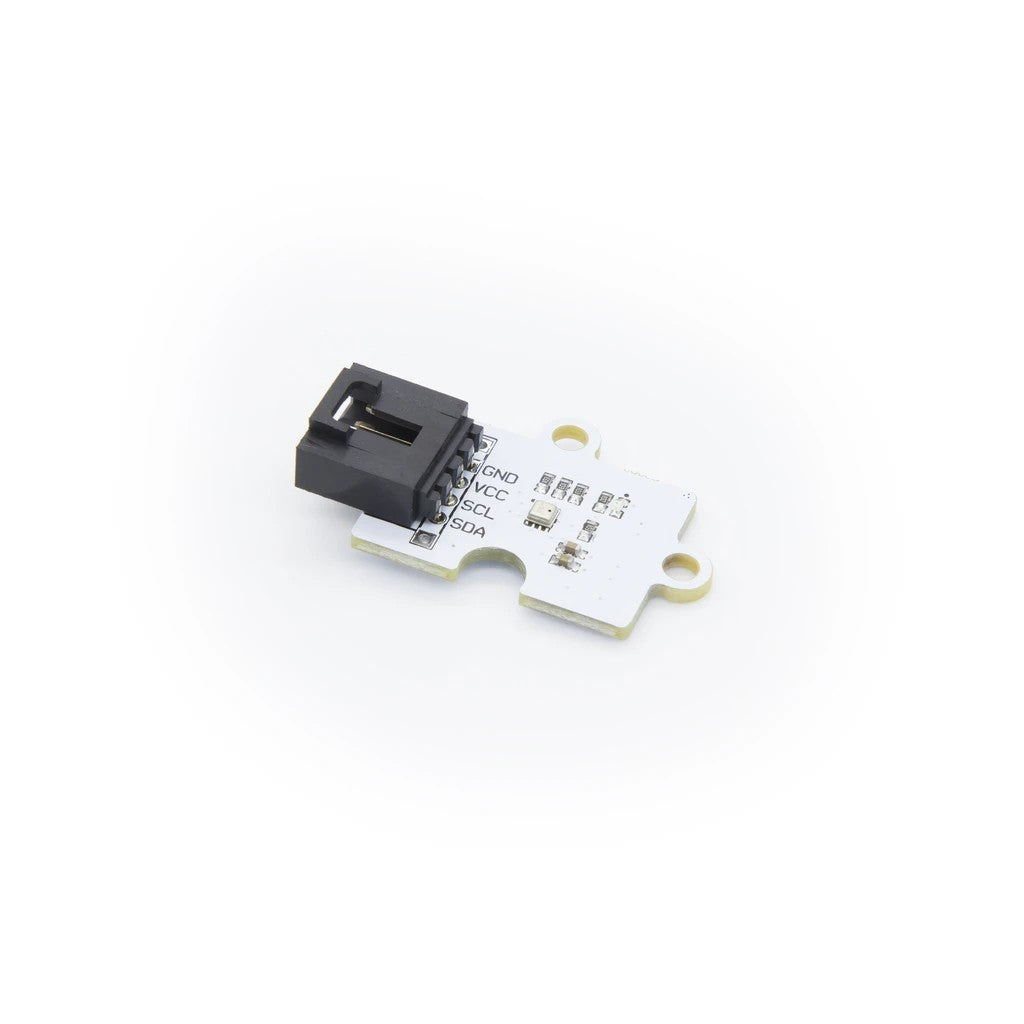

Octopus Temperature, Humidity and Pressure Sensor (BME280)

The Octopus BME280 Sensor has integrated temperature sensor, air pressure sensor, and humidity sensor onboard. It can be used to measure humidity, temperature, and air pressure, or even to calculate the altitude according to the measured air pressure.

The sensor communicates over I2C. With a micro:bit, connect it to the I2C connector on an Octopus:bit expansion board.

Specifications

• SKU: EF04087
• Working voltage: 1.2V to 3.6V DC
• Interface: I2C (up to 3.4MHz) or SPI
• Humidity: 0 to 100% RH, tolerance ±2%
• Air pressure: 300 to 1100 hPa, tolerance ±1 hPa
• Temperature: 0°C to 65°C, tolerance ±0.5°C (typical)
• Size: 31 x 23 mm, with 3 mm mounting hole

What's Included

• 1 x Octopus BME280 Pressure Sensor
• 1 x Analog Sensor Cable
