ElecFreaks

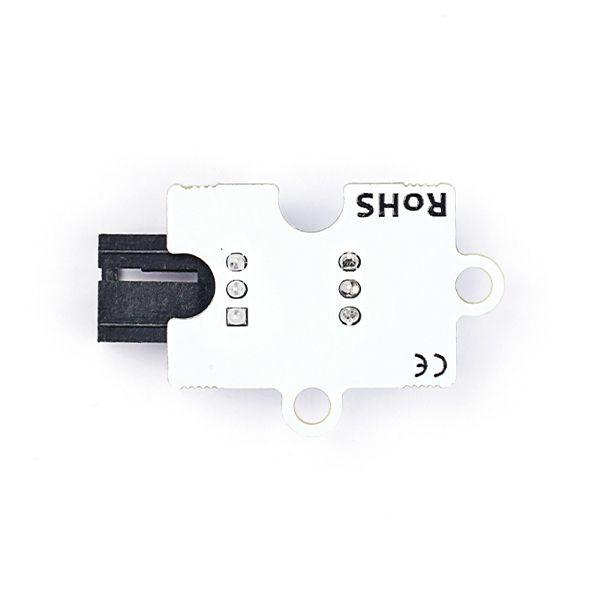

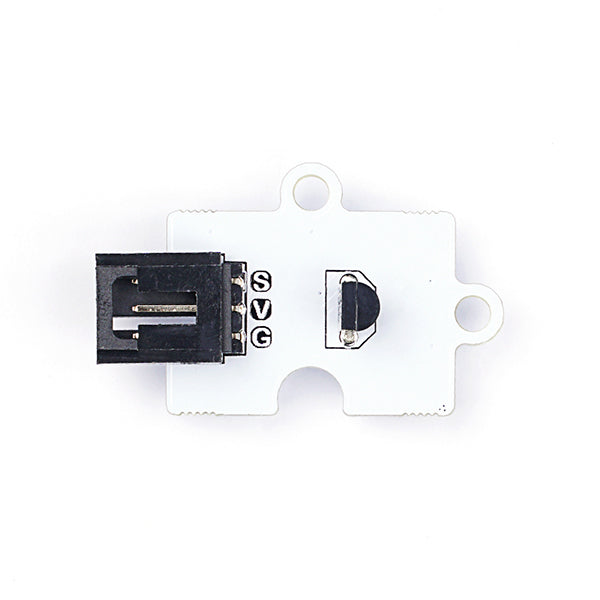

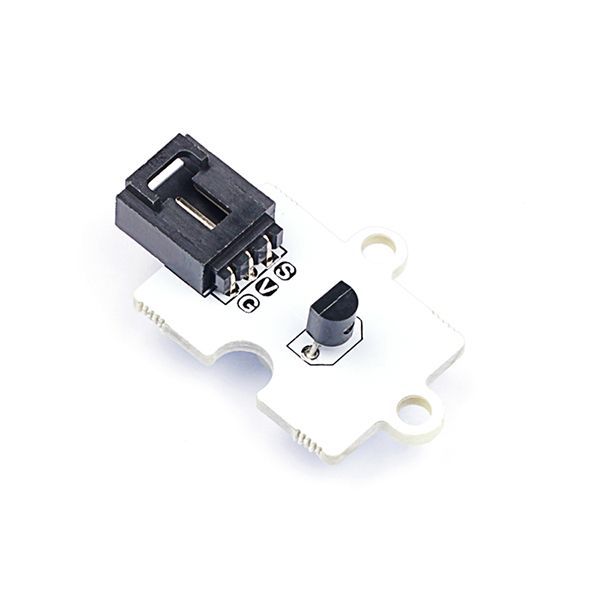

Octopus TMP36 Temperature Sensor

Octopus TMP36 Temperature Sensor

Regular price $5 USD
Regular price Sale price $5 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

ELECFREAKS Octopus TMP36 Temperature Sensor is a temperature sensor with low voltage and accurate celsius read. It can provide a voltage output, which forms a linear relationship with celsius temperature. TMP36 does not need any external calibration. When it is at +25°C, its typical accuracy is ±1°C, while it is within the range from -40°C to +125°C, its typical accuracy is ±2°C.

Features

  • Accuracy: ±2°C(Typical value in the whole temperature range)
  • Linear Degree: ±0.5°C(Typical)
  • Enable to drive big capacitive load stably
  • Low Working Voltage: +2.7 V to +5.5 V
  • When power currency is lower than 50 μA, it has a very small automatic heat effect
  • No need to do any external calibration
  • Nominated Temperature Measuring Range: -40 °C to +125 °C, working temperature can be up to +150 °C
  • Ratio Coefficient: +10 mV/°C
  • Analog Output
  • Static Current: lower than 50 μA
  • Turn Off Current: Maximum 0.5 μA

What's Included

  • 1x Octopus TMP36 Temperature Sensor Brick
  • 1x Analog Sensor Cable
