Raspberry Pi
Raspberry Pi 5 Official Case
Raspberry Pi 5 Official Case
Regular price
$22 SGD
Regular price
Sale price
$22 SGD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

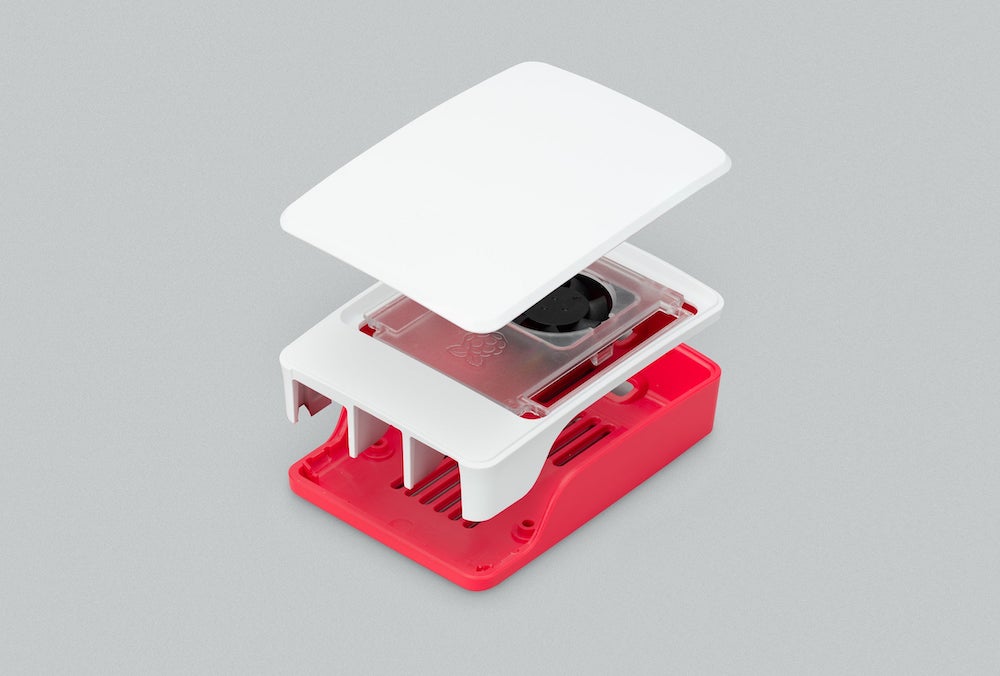

The official Case for Raspberry Pi 5 is a refinement of the Raspberry Pi 4 case, with improved thermal features to support the higher peak power consumption of Raspberry Pi 5. It is a clip-together four-part enclosure with an integrated variable-speed fan, powered and controlled from a dedicated connector on the Raspberry Pi 5 PCB. The case is available in Raspberry Pi’s signature red/white colour scheme.
Features
- Temperature-controlled cooling fan that connects to the Raspberry Pi 5 fan connector
- 12 × 17 × 4 mm heatsink with a self-adhesive pad to improve heat transfer from the processor
- Easily removable lid that exposes the fan and gives a slot for cables and GPIO access
- Built-in features for stacking cases
- HATs can be mounted using standoffs and GPIO header extenders (sold separately)
- Four silicone feet included
Specifications
| Input voltage | 5V DC via the Raspberry Pi 5 four-pin fan header |
|---|---|
| Fan speed control | PWM with tachometer feedback |
| Maximum airflow | 2.79 CFM |
| Maximum fan speed | 8000 RPM ±15% |
| Materials | ABS (base, frame and lid); PC (fan assembly) |
Compatibility
Designed for Raspberry Pi 5 only. Raspberry Pi 5 not included.
