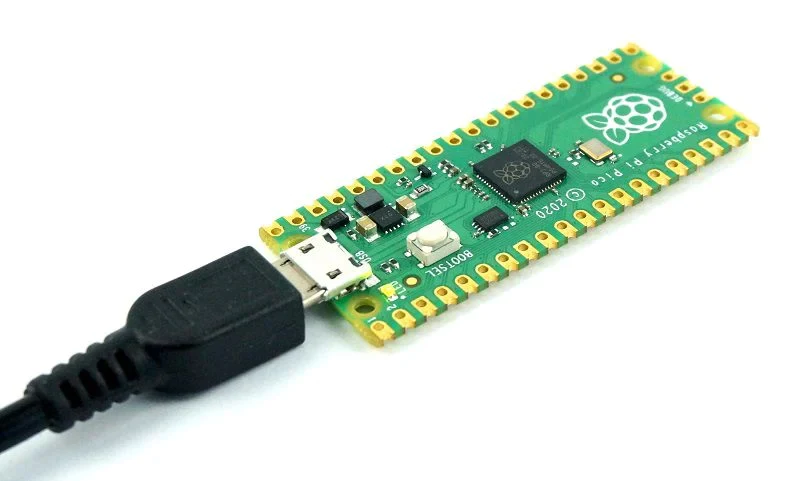

The 1st MCU Board from Raspberry Pi - Pico
Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK, now available in Singapore. Designed for physical computing projects that controls anything from small electronic components, LEDs, motors; reading information from sensors, or communicate with other microcontrollers.
- Compact and Easy-to-mount
- USB Micro for Power and Data
- Large RAM and Flash Size
- Programmable in MicroPython, C, and C++
- Flexible Power Input
Specification
- 21 mm × 51 mm form factor
- RP2040 microcontroller chip designed by Raspberry Pi in the UK
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- 26 multifunction GPIO pins, including 3 analogue inputs
- 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8–5.5V DC
- Operating temperature -20°C to +85°C
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
What’s Included
- 1 x Raspberry Pi Pico - without pre-solder header
- 2 x 20-pin Straight Header Male Pin*
*A pair of 20-way male headers are included. BUT, you will need to solder it on your own.
