Tiny 2350 (4MB Headered)

A postage stamp sized RP2350 development board with a USB-C connection, perfect for portable projects, wearables, and embedding into stuff.

While we love the Raspberry Pi Pico we also wanted something smaller and with a bunch more flash on board. Introducing the Tiny 2350 - a teeny tiny powerhouse with the chops to realise truly ambitious projects.

Programmable via USB-C, Tiny 2350 comes with 4MB of flash storage on board. The board is designed with castellated pads to allow it to be directly soldered onto a PCB (or you can attach pin headers to hook it up on a breadboard or connect things to it directly with wires). We've also managed to fit in a programmable RGB LED, a reset button, a Qw/ST connector for connecting up I2C devices and some clever circuitry that lets you use the boot button as a user controllable switch.

It's compatible with firmware built for the Raspberry Pi Pico 2 but offers a reduced number of pins due to its size. You can even run MicroPython on it!

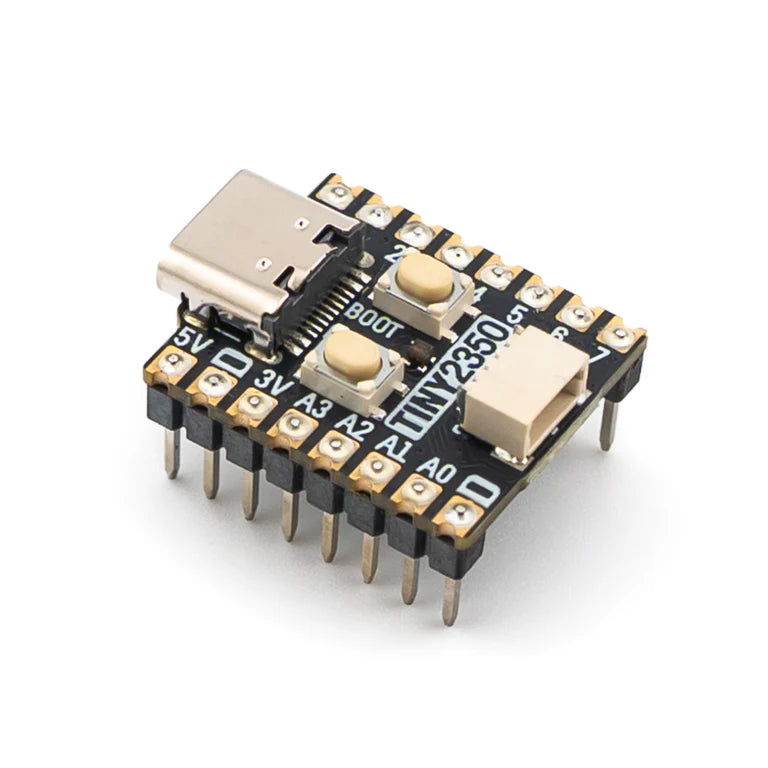

Due to popular demand, we've now also got headered Tiny 2350s available, with downwards pointing pin headers lovingly pre-soldered by pirates.

Features

• Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 4MB of QSPI flash supporting XiP
• USB-C connector for power, programming, and data transfer
• User controllable RGB LED
• Qw/ST (Qwiic/STEMMA QT) connector for attaching breakouts
• Twelve IO pins (including four 12-bit ADC channels)
• Reset and BOOT buttons (the BOOT button can also be used as a user button)
• On-board 3V3 regulator (max regulator current output 300mA)
• Input voltage range 3V - 5.5V
• Programmable with C/C++ or MicroPython
• Dimensions: approx 22.9 x 18 x 5.8mm (L x W x H, including the USB-C port)
