Wukong micro:bit Breakout Board (LEGO-compatible)

Wukong micro:bit Breakout Board (LEGO-compatible)

$40 SGD
$40 SGD
Sale Sold out
Tax included. Shipping calculated at checkout.

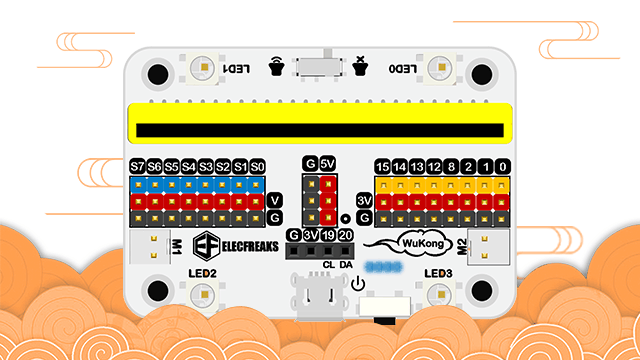

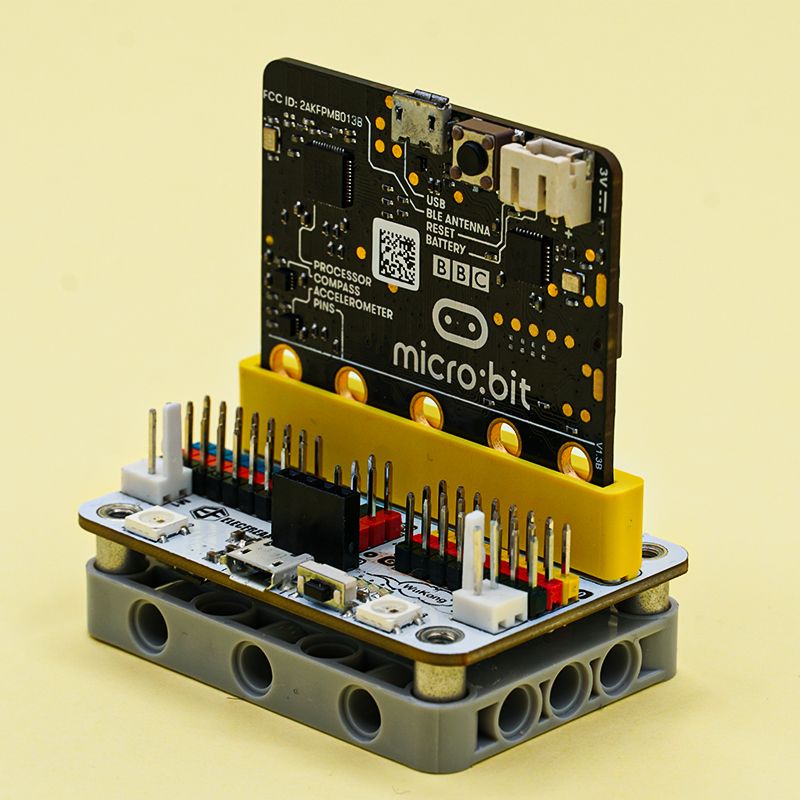

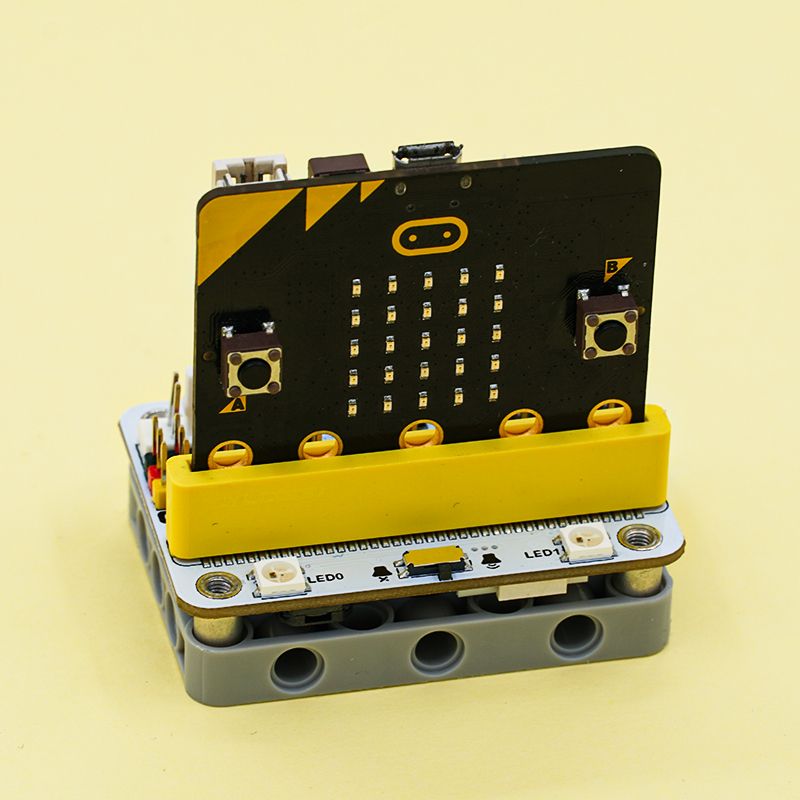

Wukong is a highly integrated breakout board from ElecFreaks with multiple functions based on the micro:bit. It is a similar size to the micro:bit, with buzzer, servo and motor drivers onboard. The base board is designed with standard 7x5 square bricks that fit LEGO.

A built-in 400mAh Li-ion battery charges fully in about 20 minutes and runs for more than 40 minutes. It is programmed in Microsoft MakeCode by adding the "wukong" extension.

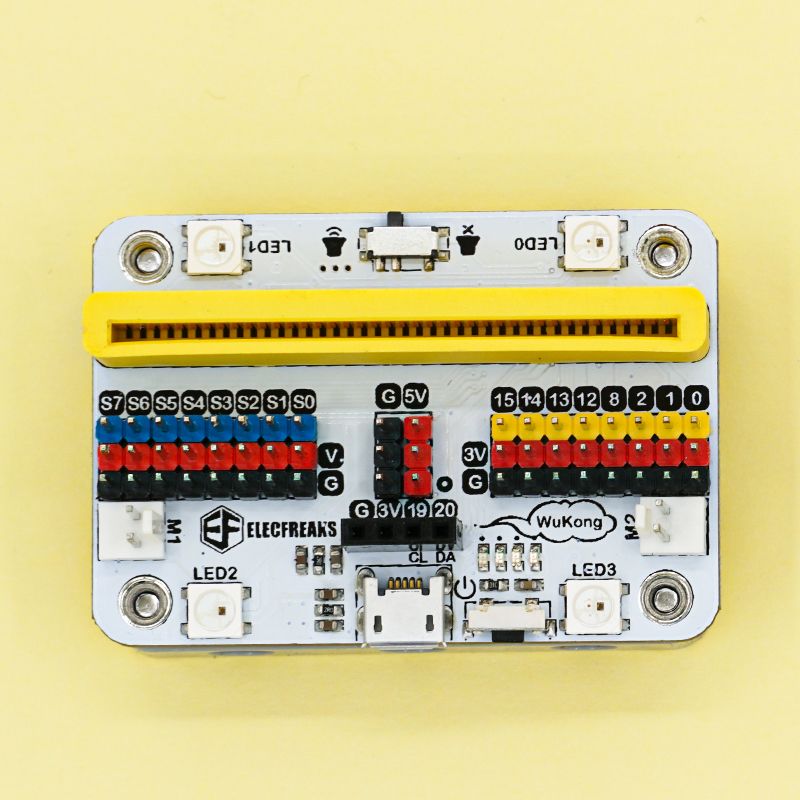

Features

  • 2 motor drive connections (M1, M2)
  • 8 servo connections (S0 to S7)
  • IO ports P0, P1, P2, P8, P12, P13, P14, P15 broken out in GVS form, supporting 3V and 5V modules
  • Standalone I2C port, for modules such as an OLED display or BME280
  • 4 rainbow LEDs (on P16) and 8 programmable LEDs on the base
  • One-button power: click once to turn on, double-click to turn off; four LEDs show battery level
  • Can also be powered from its USB connection

Specifications

Item no. EF08207
Working voltage 3.7V to 5V (battery 3.7V, USB 5V)
Working temperature -20°C to 60°C (charging 0°C to 40°C)
Size 40.00 x 58.12 x 24.53 mm (with LEGO base board, without micro:bit)
Weight 41.6g (with LEGO base board and battery)

See the ElecFreaks Wukong wiki for guides and examples.
